Exhaust turbocharger with lubrication for BMW 3 Series F30 LCI 320d (2018)

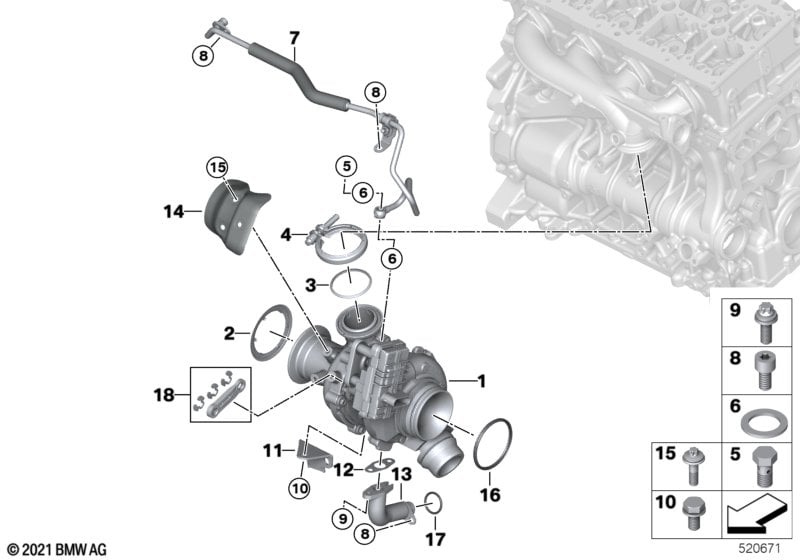

This Exhaust turbocharger with lubrication technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Please always observe repair instructions 11 65 020! |
||||||||||
| 01 | Turbocharger | 1 | 11658570083 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Installation kit exhaust turbocharger | VALUE PARTS | 1 | 11652471553 | Shop at ECS Tuning | |||||
| 02 | Gasket | 1 | 18308513651 | Shop at ECS Tuning | ||||||
| 03 | Gasket ring | 1 | 11628519884 | Shop at ECS Tuning | ||||||
| 04 | Clamp | 1 | 11628519885 | Shop at ECS Tuning | ||||||
| 05 | Hollow bolt | M10X1-ZNNIV SI | 1 | 07119907291 | Shop at ECS Tuning | |||||
| 06 | Sealing ring | 2 | 11427100363 | NoS | Shop at ECS Tuning | |||||
| 07 | Oil pipe inlet | 1 | 11428513616 | Shop at ECS Tuning | ||||||
| 08 | ISA screw | M6X16-8.8-ZNNIV | 3 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 09 | ASA-Bolt | BM6X16-ZNNIV SI | 2 | 07119907573 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M8X16 | 3 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 11 | Support bracket for turbocharger | 1 | 11658513642 | Shop at ECS Tuning | ||||||
| 12 | Gasket Asbestos Free | 1 | 11427925922 | Shop at ECS Tuning | ||||||
| 13 | Return pipe | 1 | 11428513617 | Shop at ECS Tuning | ||||||
| 14 | Heat shield turbine housing | 1 | 11658590003 | Shop at ECS Tuning | ||||||
| 15 | Star-socket screw | M6X12 8.8 | 3 | 07119908672 | Shop at ECS Tuning | |||||
| 16 | Preformed seal | 1 | 11617796622 | $6.65 | Shop at ECS Tuning | |||||
| 17 | O-ring | 16X2 | 1 | 11127689563 | $1.32 | Shop at ECS Tuning | ||||
| 18 | Repair kit for coupling rod | 1 | 11658596433 | Shop at ECS Tuning | ||||||
