Timing case for BMW 3 Series E36 318i (1996)

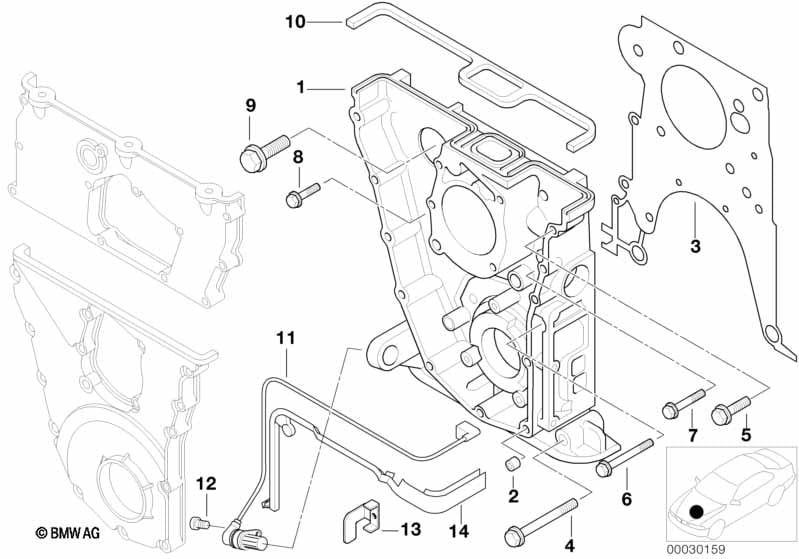

This Timing case technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lower chain case | 1 | 11141739800 | $323.26 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Dowel | D=8,5X9MM | 2 | 11121726242 | $1.07 | Shop at ECS Tuning | ||||
| 03 | Gasket Steel | 1 | 11141739868 | Shop at ECS Tuning | ||||||
| 03 | Gasket Steel | 1 | 11141743032 | $22.71 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M8X60-ZNNIV SI | 2 | 07119905855 | $0.82 | Shop at ECS Tuning | ||||
| 05 | Torx-bolt with washer | M8X20 ZNNIV SI | 3 | 07129905423 | $0.55 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M6X50-ZNNIV SI | 1 | 07119905377 | $0.53 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X30-ZNNIV SI | 2 | 07119906123 | $0.81 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M6X20 | 4 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M10X25-10.9ZNS3 | 1 | 07119905147 | $1.07 | Shop at ECS Tuning | ||||
| 10 | Profile-gasket | 1 | 11141247849 | $7.94 | Shop at ECS Tuning | |||||
| 12 | Fillister-head screw | M6X16 | 2 | 11421740488 | $0.98 | Shop at ECS Tuning | ||||
| 13 | Holder | 1 | 12141743198 | $0.68 | Shop at ECS Tuning | |||||
| 14 | Cable guide | 1 | 12141743197 | $2.95 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
