Engine Suspension / Damper for BMW 3 Series E36 320i (1996)

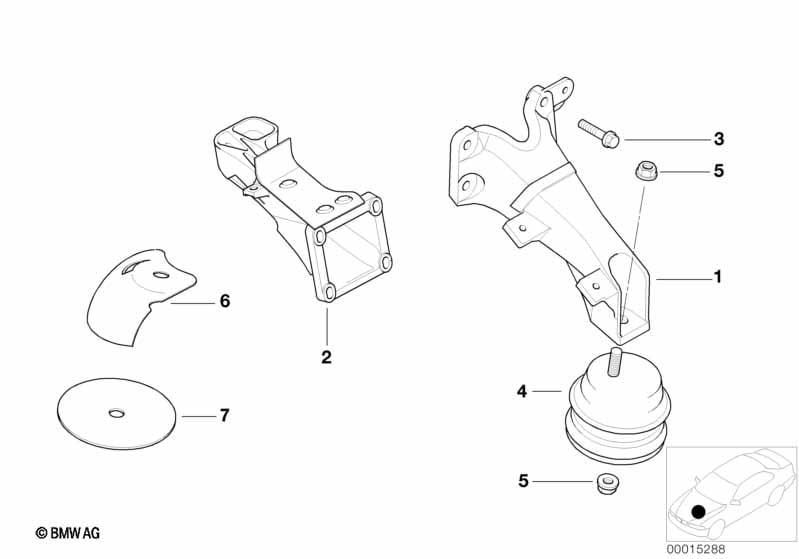

This Engine Suspension / Damper technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket left | 1 | 11811141137 | $32.77 | Shop at ECS Tuning | |||||
| 02 | Supporting bracket right | 1 | 09/1998 | 11811138249 | $82.14 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M8X34-ZA-Z1 | 8 | 07119900728 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Rubber Mounting | 2 | 22116771361 | $62.42 | ENDED | Shop at ECS Tuning | ||||
| 05 | Flange nut | M10 | 4 | 22116779973 | $0.68 | Shop at ECS Tuning | ||||
| 07 | Heat Protection Plate Right | 1 | 11811137776 | $4.91 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 320i Engine Suspension / Damper?
- This technical diagram illustrates the Engine Suspension / Damper within the Engine group for the 3 Series E36 320i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Supporting bracket left (Part #11811141137).
- Which models use the hardware listed in this Engine Suspension / Damper?
- The hardware and components featured in the Engine Suspension / Damper are specific to the 3 Series E36 320i produced during 1996. These technical specifications ensure that parts like the Supporting bracket left (11811141137) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine Suspension / Damper assembly?
- Each item in the Engine Suspension / Damper corresponds to the numbered list below the illustration. For the 3 Series E36 320i, you can identify the Supporting bracket left by locating its position on the schematic, which then links to the official BMW part number 11811141137 for the Engine section.
