Intake manifold system for BMW 3 Series E36 M3 (1995)

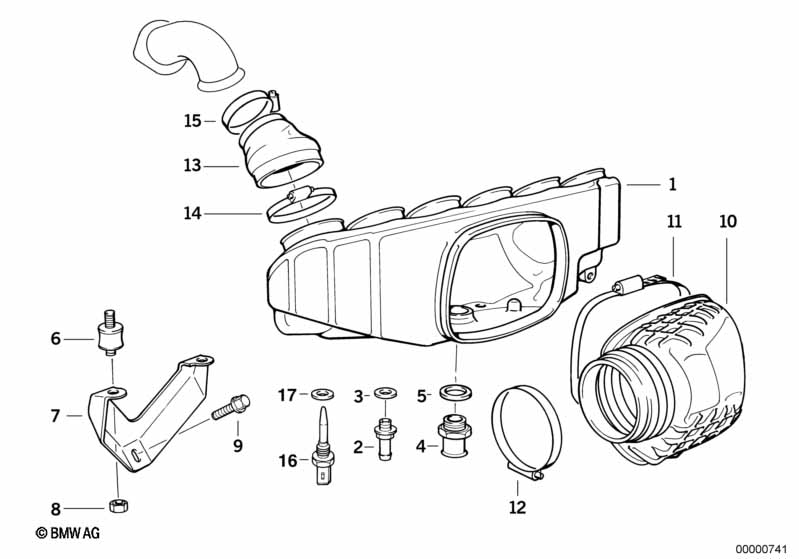

This Intake manifold system technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air collector | 1 | 11611401116 | $789.73 | Shop at ECS Tuning | |||||
| 02 | Connector | 1 | 11121307249 | $6.45 | Shop at ECS Tuning | |||||
| 03 | Gasket ring | A10X13,5-CU | 1 | 07119963072 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Connector | 27X1 | 1 | 11611401101 | $11.27 | Shop at ECS Tuning | ||||
| 05 | Gasket ring | A27X32-AL | 1 | 07119963441 | $0.30 | Shop at ECS Tuning | ||||
| 06 | Rubber Mounting | 2 | 13711272495 | $6.29 | Shop at ECS Tuning | |||||
| 07 | Holder | 1 | 11611401583 | $16.95 | Shop at ECS Tuning | |||||
| 08 | Hex nut with plate | M8-ZNS3 | 2 | 07129904862 | $1.12 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M8X16-Z3-2 | 1 | 07119915071 | $0.47 | Shop at ECS Tuning | ||||
| ETA/Liefertermin nicht vor 01 Juni 2025 | ||||||||||
| 10 | Air duct | 1 | 11611401996 | $76.50 | Shop at ECS Tuning | |||||
| 11 | Hose clamp | L190-210 | 1 | 11611318378 | $4.39 | Shop at ECS Tuning | ||||
| 12 | Hose clamp | L95-102 | 1 | 07129952137 | $1.52 | Shop at ECS Tuning | ||||
| 13 | Hose | 6 | 11611317167 | $16.95 | Shop at ECS Tuning | |||||
| 14 | Hose clamp | L83-90 | 6 | 07129952133 | $1.78 | Shop at ECS Tuning | ||||
| 15 | Hose clamp | L65-72 | 6 | 07129952127 | $1.89 | Shop at ECS Tuning | ||||
| 16 | Intake air temperature sensor | 1 | 13621725324 | Shop at ECS Tuning | ||||||
| 17 | Gasket ring | A12X15,5 AL | 1 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
