Timing and valve train-timing chain for BMW 3 Series E36 M3 (1998)

Sign In
Sign Out
Account

Donate Go Ad Free

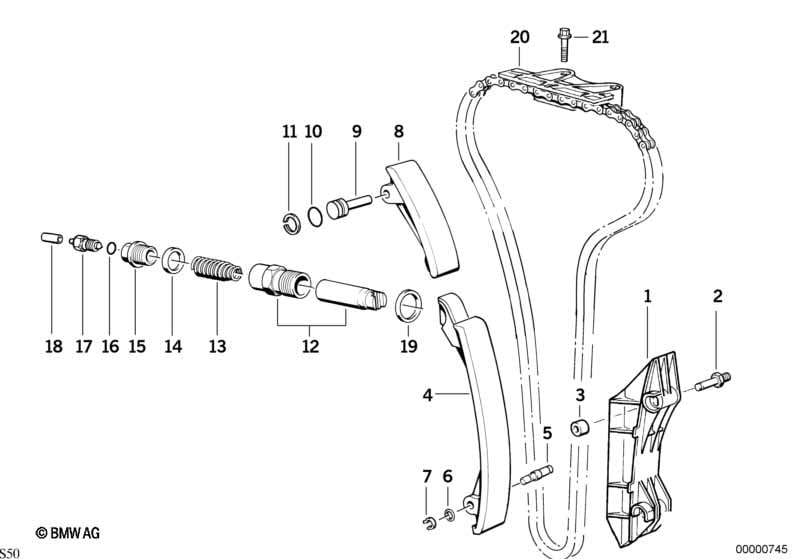

This Timing and valve train-timing chain technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.

No.	Description	Supp.	Qty	Part Number	Price
01	Slide rail-twin chain		1	11311317338	$32.22	Shop at ECS Tuning
02	Bolt		2	11311317668	$6.35	Shop at ECS Tuning
03	Bush		2	11311317669	$1.07	Shop at ECS Tuning
04	Chain tensioner-twin chain		1	11311309945	$266.10	Shop at ECS Tuning
05	Bolt		1	11111317548	$30.13	Shop at ECS Tuning
06	O-ring	10X2	2	07119906328	$0.13	Shop at ECS Tuning
07	Circlip	7,0	1	07119905858	$0.96	Shop at ECS Tuning
08	Chain tensioner		1	11311317335	$244.49	Shop at ECS Tuning
09	Bolt		1	11311307399	$15.81	Shop at ECS Tuning
10	O-ring	14X2,5	1	11311307408	$1.19	Shop at ECS Tuning
11	Lock Ring	19X1	1	07119934628	$0.36	Shop at ECS Tuning
12	Chain tensioner		1	11311405081	$153.27	Shop at ECS Tuning
19	Gasket ring	A26X31-AL	1	07119963418	$0.25	Shop at ECS Tuning
20	Slide rail-twin chain		1	11311317339	$32.22	Shop at ECS Tuning
21	Hex bolt with washer	M7X35-Z1	2	07119912379	$1.42	Shop at ECS Tuning
