Cylinder Head Attached Parts for BMW 3 Series E36 M3 (1997)

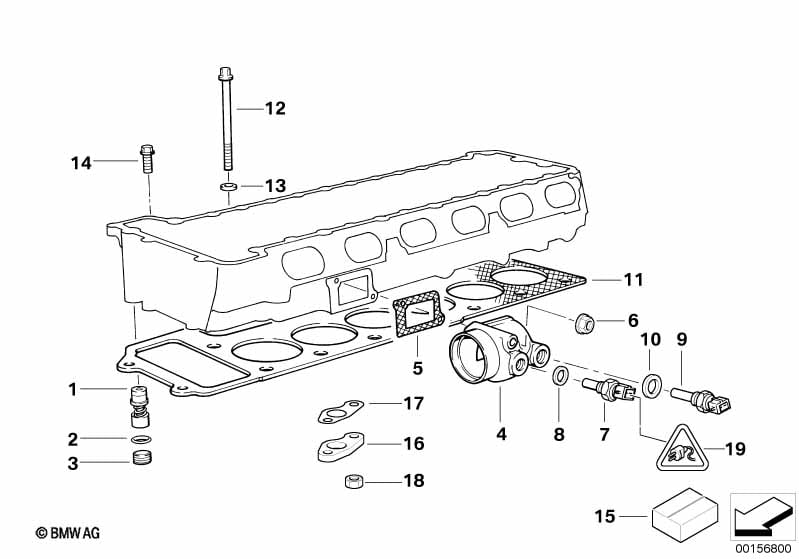

This Cylinder Head Attached Parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1997.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Regulating valve | 1 | 11121318054 | $62.84 | Shop at ECS Tuning | |||||
| 02 | Gasket ring | A18X22-CU | 1 | 07119963308 | $0.25 | Shop at ECS Tuning | ||||
| 03 | Screw plug | M18X1,5-ZNNIV | 1 | 07119905428 | $11.47 | Shop at ECS Tuning | ||||
| 04 | Cover | 1 | 11121317362 | +core | Shop at ECS Tuning | |||||
| 05 | Gasket Asbestos Free | 1 | 11121317364 | $2.35 | Shop at ECS Tuning | |||||
| 06 | Hex nut with plate | AM7 ZNNIV SI | 2 | 07129905541 | $0.64 | Shop at ECS Tuning | ||||
| 07 | Double temperature switch | 1 | 13621703993 | $21.80 | +core | Shop at ECS Tuning | ||||
| 09 | Screw plug | M14X1,5-ST-ZNS3 | 1 | 07119904392 | $2.08 | Shop at ECS Tuning | ||||
| 10 | Gasket ring | A14X18-AL | 1 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Cylinder Head Gasket Asbestos-Free | 1.74MM | 1 | 11121405748 | $159.56 | Shop at ECS Tuning | ||||
| 12 | Torx bolt | X | 11121317979 | $4.20 | Shop at ECS Tuning | |||||
| 13 | Washer | X | 11121317361 | $1.03 | Shop at ECS Tuning | |||||
| 14 | Isa screw with washer | M6X30-U0-8.8 | 2 | 07129905537 | $1.09 | Shop at ECS Tuning | ||||
| 15 | Gasket Set Cylinder Head Asbestos Free | 1 | 11121405282 | $473.93 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Low compression engine |
=Yes |
|||||||||
| 16 | Cover lid | 1 | 11721402416 | $11.10 | Shop at ECS Tuning | |||||
| 17 | Gasket Asbestos Free | 1 | 11721318467 | $6.08 | Shop at ECS Tuning | |||||
| 18 | Hex nut | M6-ZNS3 | 2 | 07/2000 | 07119904023 | $0.36 | ENDED | Shop at ECS Tuning | ||
| 19 | Plug housing | 4 POL. | 4 | 12521703571 | $3.07 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Circular connector | 0,5- 1,0 MM² | 1 | 61130007657 | $4.07 | Shop at ECS Tuning | ||||
| -- | Single conductor seal | 0,75-1,0MM² | 1 | 12521748973 | $0.13 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
