Crankshaft-Pistons for BMW 3 Series E36 M3 (1999)

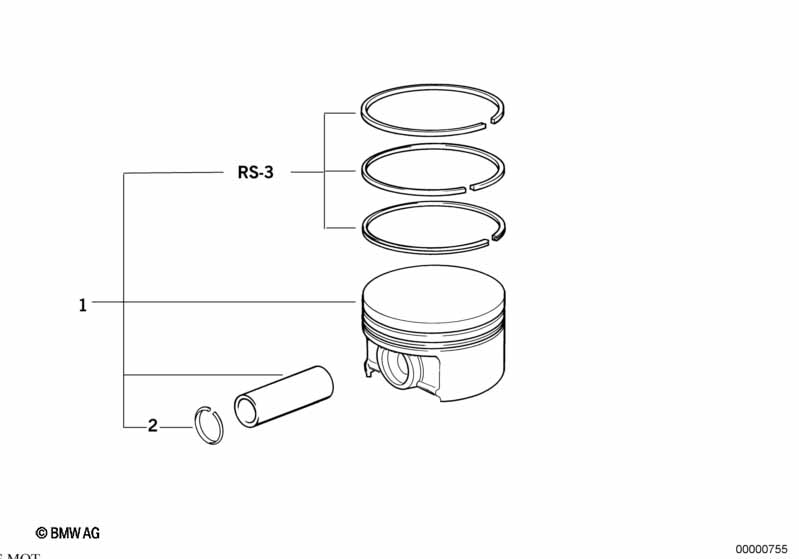

This Crankshaft-Pistons technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Piston kit | 86,365MM(0) | 1 | 11251405264 | $2003.22 | Shop at ECS Tuning | ||||
| 01 | Piston kit | 86,415MM(00) | 1 | 11251405265 | $1880.46 | ENDED | Shop at ECS Tuning | |||
| 01 | Piston kit | 86,565MM(+0,20) | 1 | 11251405266 | $1880.46 | ENDED | Shop at ECS Tuning | |||
| 02 | Snap ring | X | 11251401807 | ENDED | Shop at ECS Tuning | |||||
| 03 | Repair kit piston rings | (00) | 6 | 11251405267 | $146.17 | Shop at ECS Tuning | ||||
| 03 | Repair kit piston rings | (+0,20) | 6 | 11251405268 | $113.83 | Shop at ECS Tuning | ||||
| 03 | Repair kit piston rings | (0) | 6 | 11251405407 | $146.17 | Shop at ECS Tuning |
