Belt drive-air pump/climate compressor for BMW 3 Series E36 M3 (1995)

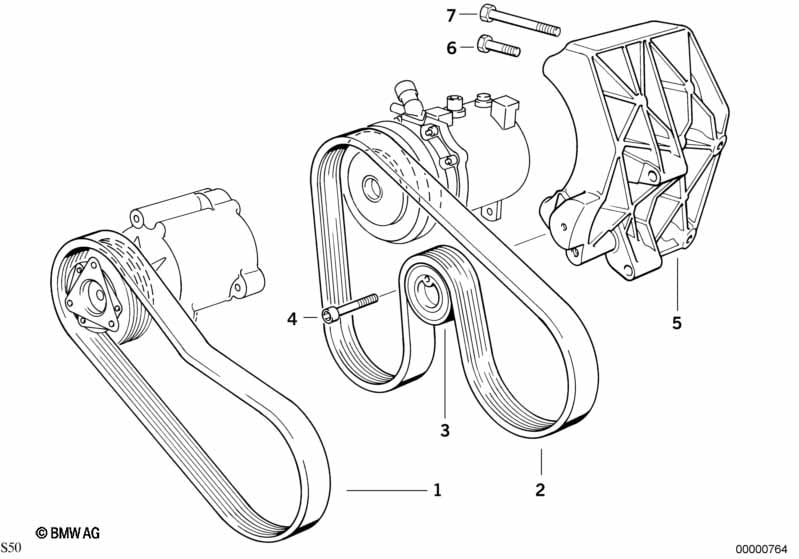

This Belt drive-air pump/climate compressor technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ribbed v-belt | 5K X 785 | 1 | 11281401162 | $26.28 | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 02 | Ribbed v-belt | 5K X 1125 | 1 | 11281401159 | $31.25 | Shop at ECS Tuning | ||||
| 03 | Adjusting pulley | 1 | 11282245087 | $80.75 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M8X35 | 1 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Carrier | 1 | 64551402233 | $87.50 | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M8X30-Z3 | 4 | 07119915085 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M8X50-U1-8.8 | 2 | 07119904504 | $1.15 | Shop at ECS Tuning | ||||
