Valve Timing Gear - Cam Shaft for BMW 3 Series E36 325tds (1999)

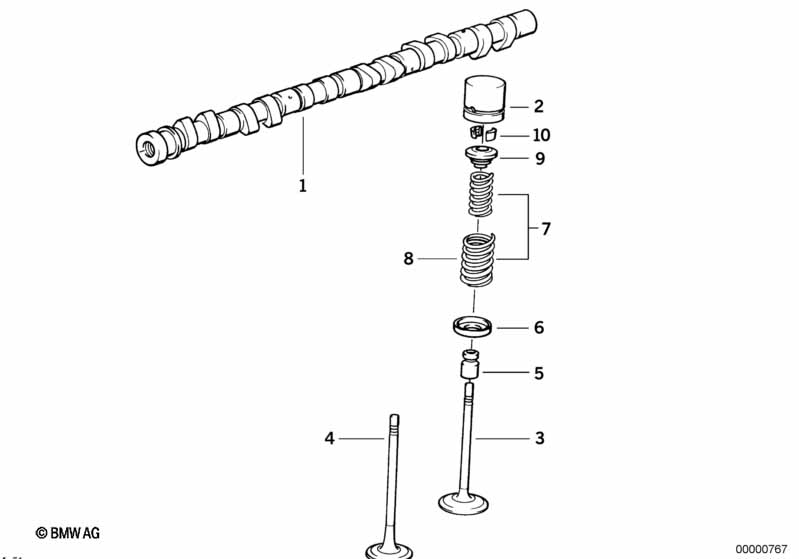

This Valve Timing Gear - Cam Shaft technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Camshaft Camshaft | 1 | 11312244460 | $563.58 | +core | Shop at ECS Tuning | ||||
| 02 | Hydraulic valve lifter | 12 | 11321739299 | $32.50 | Shop at ECS Tuning | |||||
| 03 | Intake valve | 36,0/5,97MM | 6 | 11342246524 | $64.87 | Shop at ECS Tuning | ||||
| VALVE HEAD THICKNES: +0,50MM | ||||||||||
| 03 | Intake valve w.oversize VA.system +0,1mm | 36,0/6,07MM | 6 | 11342244870 | ENDED | Shop at ECS Tuning | ||||
| 03 | Intake valve w.oversize VA.system +0,2mm | 36,0/6,17MM | 6 | 11342244931 | ENDED | Shop at ECS Tuning | ||||
| VALVE HEAD THICKNES: +0,25MM | ||||||||||
| 03 | Intake valve | 36,0/5,97MM | 6 | 11342246527 | ENDED | Shop at ECS Tuning | ||||
| 03 | Intake valve w.oversize VA.system +0,1mm | 36,0/6,07MM | 6 | 11342246529 | ENDED | Shop at ECS Tuning | ||||
| 04 | Exhaust valve | 31,0/5,95MM | 6 | 11342246525 | $77.29 | Shop at ECS Tuning | ||||
| VALVE HEAD THICKNES: +0,50MM | ||||||||||
| 04 | Exh. valve w.oversize VA.system +0,1mm | 31,0/6,05MM | 6 | 11342244862 | ENDED | Shop at ECS Tuning | ||||
| 04 | Exhaust valve w.oversize VA.system+0,2mm | 31,0/6,15MM | 6 | 11342244927 | ENDED | Shop at ECS Tuning | ||||
| VALVE HEAD THICKNES: +0,25MM | ||||||||||
| 04 | Exhaust valve | 31,0/5,95MM | 6 | 11342246528 | ENDED | Shop at ECS Tuning | ||||
| 04 | Exh. valve w.oversize VA.system +0,1mm | 31,0/6,05MM | 6 | 11342246530 | ENDED | Shop at ECS Tuning | ||||
| 05 | Repair kit valve seal ring | 1 | 11349064457 | $46.94 | ENDED | Shop at ECS Tuning | ||||
| 06 | Lower spring plate | 12 | 11341735254 | $3.77 | Shop at ECS Tuning | |||||
| 08 | Valve spring | 12 | 11342244813 | $7.88 | Shop at ECS Tuning | |||||
| 09 | Upper spring plate | 12 | 11341724991 | $3.77 | Shop at ECS Tuning | |||||
| 10 | Valve collet | D=6 | 24 | 11341461405 | $1.34 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
