Emission control-air pump for BMW 3 Series E36 M3 (1998)

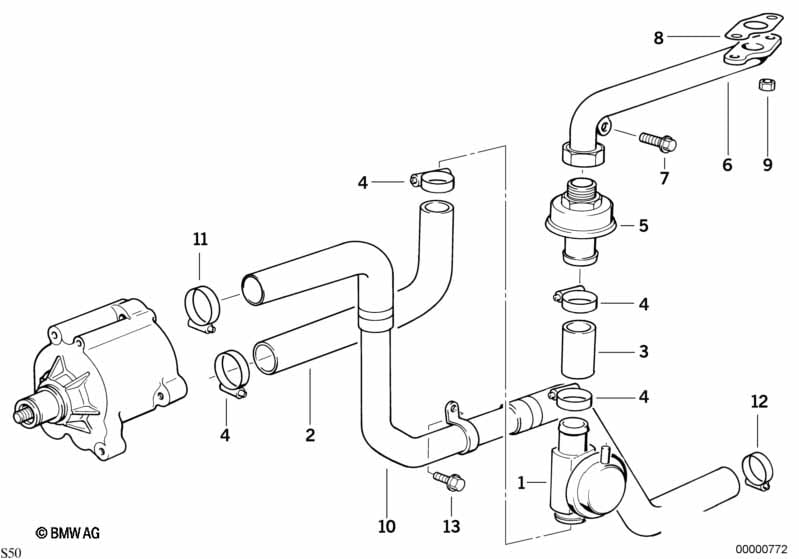

This Emission control-air pump technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Valve | 1 | 11721402464 | $114.19 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hose | 1 | 11721405401 | $26.79 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Hose | 1 | 11727837593 | Shop at ECS Tuning | ||||||
| 04 | Hose clamp | L16-30 | 4 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 05 | non-return valve | 1 | 11721748022 | $58.27 | ENDED, +core | Shop at ECS Tuning | ||||
| 06 | Air intake tube | 1 | 11721318475 | $160.89 | Shop at ECS Tuning | |||||
| 07 | Hex bolt with washer | M6X12-Z1 | 1 | 07119915017 | $0.36 | ENDED | Shop at ECS Tuning | |||
| 08 | Gasket Asbestos Free | 1 | 11721318467 | $6.08 | Shop at ECS Tuning | |||||
| 09 | Hex nut | M6-ZNS3 | 2 | 07/2000 | 07119904023 | $0.36 | ENDED | Shop at ECS Tuning | ||
| 10 | Air intake tube | 1 | 11721404626 | $102.84 | +core | Shop at ECS Tuning | ||||
| 11 | Hose clamp | L28-33 | 1 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 12 | Hose clamp | L32-38 | 1 | 07129952115 | $1.27 | Shop at ECS Tuning | ||||
| 13 | Hex bolt with washer | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning |
