Belt Drive Water Pump/Alternator for BMW 3 Series E36 320i (1995)

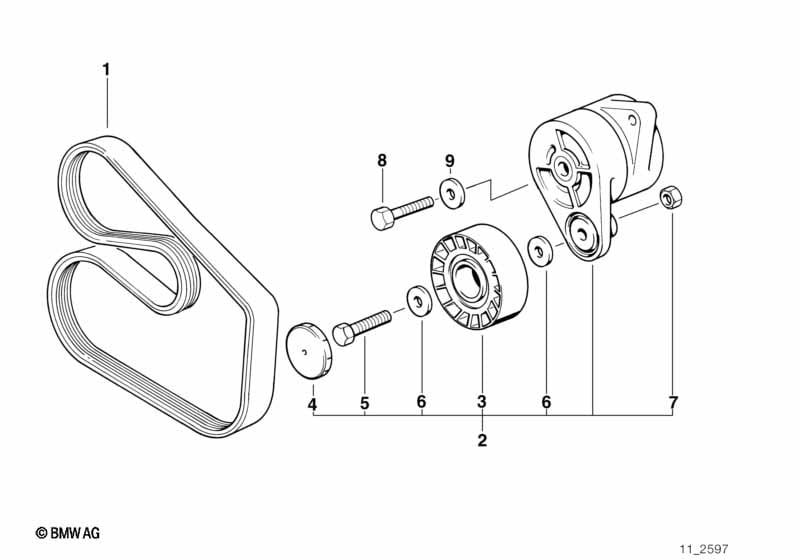

This Belt Drive Water Pump/Alternator technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to MECHANICAL BELT TENSIONER |
|||||||||
| 01 | Ribbed v-belt | 6PK X 1555 | 1 | 09/1994 | 11287636378 | Shop at ECS Tuning | ||||
| 02 | Complete hydraulic belt tensioner | 1 | 09/1994 | 11287838797 | $69.64 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Protection cap | 1 | 09/1994 | 12311713143 | $0.42 | Shop at ECS Tuning | ||||
| -- | Protection cap adjusting pulley | 1 | 09/1994 | 11281727159 | $2.37 | Shop at ECS Tuning | ||||
| -- | Mudguard | 1 | 09/1994 | 11281730532 | $2.37 | Shop at ECS Tuning | ||||
| -- | Adjusting pulley | 1 | 09/1994 | 11281748131 | $45.97 | Shop at ECS Tuning | ||||
| -- | Washer | 2 | 09/1994 | 11287835130 | $0.72 | Shop at ECS Tuning | ||||
| -- | Fillister-head screw | M10X25 | 1 | 09/1994 | 07129905534 | $1.50 | Shop at ECS Tuning | |||
| -- | Hex bolt | M8X105 | 1 | 09/1994 | 07119904532 | $1.78 | Shop at ECS Tuning | |||
| -- | Hex bolt | M8X50 | 1 | 09/1994 | 07119904533 | $2.84 | Shop at ECS Tuning | |||
| -- | Hex bolt | M10X150 | 1 | 09/1994 | 07119904677 | $3.82 | Shop at ECS Tuning | |||
| -- | Hex bolt with washer | M8X35-U1 | 1 | 09/1994 | 07119905533 | $0.44 | Shop at ECS Tuning | |||
| 03 | Adjusting pulley | 1 | 09/1994 | 03/1998 | 11281748131 | $45.97 | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Mechanical belt tensioner | X | 09/1994 | 03/1998 | 11281748832 | $63.29 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Protection cap adjusting pulley | 1 | 09/1994 | 03/1998 | 11281727159 | $2.37 | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Mechanical belt tensioner | X | 09/1994 | 03/1998 | 11281748832 | $63.29 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Hex bolt | M10X30-8.8-ZNS3 | 1 | 09/1994 | 03/1998 | 07119902902 | $1.30 | ENDED | Shop at ECS Tuning | |
| only applies to | ||||||||||
| -- | Mechanical belt tensioner | X | 09/1994 | 03/1998 | 11281748832 | $63.29 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Washer | 10-200 HV-ZNNIV | 1 | 09/1994 | 03/1998 | 07119904168 | $8.35 | Shop at ECS Tuning | ||
| only applies to | ||||||||||
| -- | Mechanical belt tensioner | X | 09/1994 | 03/1998 | 11281748832 | $63.29 | ENDED, +core | Shop at ECS Tuning | ||
| 08 | Hex bolt | M8X35-8.8-ZNS3 | 2 | 09/1994 | 06/1996 | 07119904252 | $0.82 | ENDED | Shop at ECS Tuning | |
| 09 | Washer | 8,4X16X1,6-ZNNV | 2 | 09/1994 | 07119907030 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
