Cylinder Head Vanos for BMW 3 Series E36 323ti (1998)

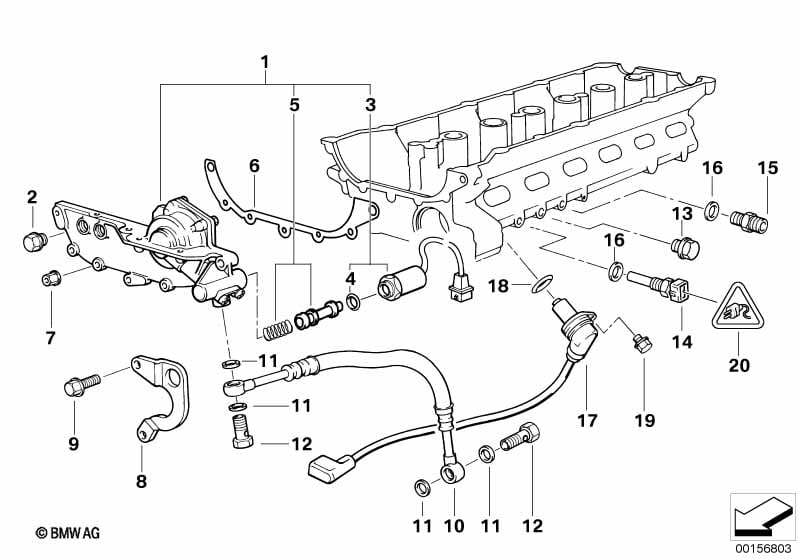

This Cylinder Head Vanos technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Adjuster unit | 1 | 11361748036 | $567.19 | Shop at ECS Tuning | |||||
| 02 | Screw Plug With Gasket Ring | 2 | 11311722674 | $4.22 | Shop at ECS Tuning | |||||
| 03 | Solenoid switch | 1 | 11361738494 | $184.43 | Shop at ECS Tuning | |||||
| 04 | O-ring | 21X2,5 | 1 | 11361703713 | $11.29 | ENDED | Shop at ECS Tuning | |||
| 05 | Piston | 1 | 11361738495 | $27.53 | Shop at ECS Tuning | |||||
| 06 | Gasket Asbestos Free | 1 | 11361740840 | $7.19 | Shop at ECS Tuning | |||||
| 07 | Hex nut with plate | AM6-8-ZNNIV SI | 6 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 08 | Holder | 1 | 11361436071 | $2.17 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Stud bolt | 1 | 11361436272 | $1.28 | Shop at ECS Tuning | |||||
| -- | Flange nut | M7 | 1 | 11361436313 | $0.35 | Shop at ECS Tuning | ||||
| 09 | Stud bolt | 1 | 04/1998 | 11361436272 | $1.28 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Flange nut | M7 | 1 | 04/1998 | 11361436313 | $0.35 | Shop at ECS Tuning | |||
| 10 | Oil pipe | 1 | 11361705532 | $53.05 | Shop at ECS Tuning | |||||
| 13 | Screw Plug With Gasket Ring | M14X1,5 | 1 | 11121740003 | $3.68 | Shop at ECS Tuning | ||||
| 14 | Double temperature switch | 1 | 13621703993 | $21.80 | +core | Shop at ECS Tuning | ||||
| 15 | Connector | M12 | 1 | 11121740396 | $6.85 | Shop at ECS Tuning | ||||
| 16 | Gasket ring | A12X15,5 AL | 1 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| ETA /Liefertermin nicht vor 01 April 2025 |
||||||||||
| 17 | Camshaft position sensor | 1 | 12141703221 | $116.05 | +core | Shop at ECS Tuning | ||||
| 18 | O-ring | 17X3 | 1 | 12141748398 | $1.20 | Shop at ECS Tuning | ||||
| 19 | Fillister-head screw | M6X16ZNNIV SI | 1 | 13627545338 | $0.47 | Shop at ECS Tuning | ||||
| 20 | Plug housing | 4 POL. | 4 | 12521703571 | $3.07 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Circular connector | 0,5- 1,0 MM² | 1 | 61130007657 | $4.07 | Shop at ECS Tuning | ||||
| -- | Single conductor seal | 0,75-1,0MM² | 1 | 12521748973 | $0.13 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
