Oil pan/oil level indicator for BMW 3 Series E36 328i (1998)

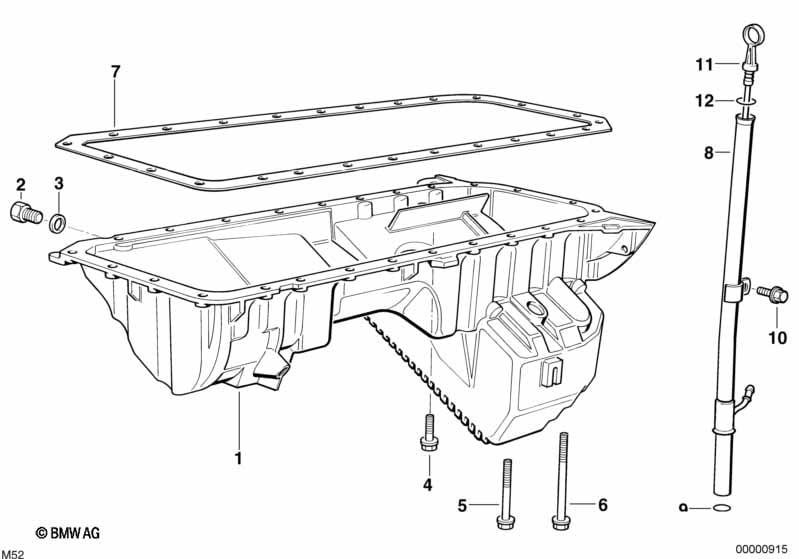

This Oil pan/oil level indicator technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil Pan | 1 | 11131748755 | $385.27 | Shop at ECS Tuning | |||||
| 02 | Screw plug | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | X | 11131740000 | $0.37 | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M6X62-Z1 | 2 | 07119900487 | $0.82 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M6X64 | 2 | 11131435807 | $0.67 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M6X100-Z1 | 2 | 07119900547 | $0.71 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M6X100 | 2 | 11131435806 | $1.08 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M6X95-U1 | 2 | 01/1996 | 07119905433 | $3.35 | Shop at ECS Tuning | |||
| 07 | Gasket Steel | 1 | 11131437237 | $48.50 | Shop at ECS Tuning | |||||
| 08 | Guide tube | 1 | 11431740044 | $40.73 | Shop at ECS Tuning | |||||
| 09 | O-ring | 19,5X3 | 1 | 11431740045 | $1.81 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M6X12-U1-8.8 | 1 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Dipstick | 1 | 11431427993 | $15.30 | Shop at ECS Tuning | |||||
| 12 | O-ring | 9X2,2 | 2 | 11431717666 | $0.73 | Shop at ECS Tuning |
