Cooling System Water Hoses for BMW 3 Series E36 320i (1998)

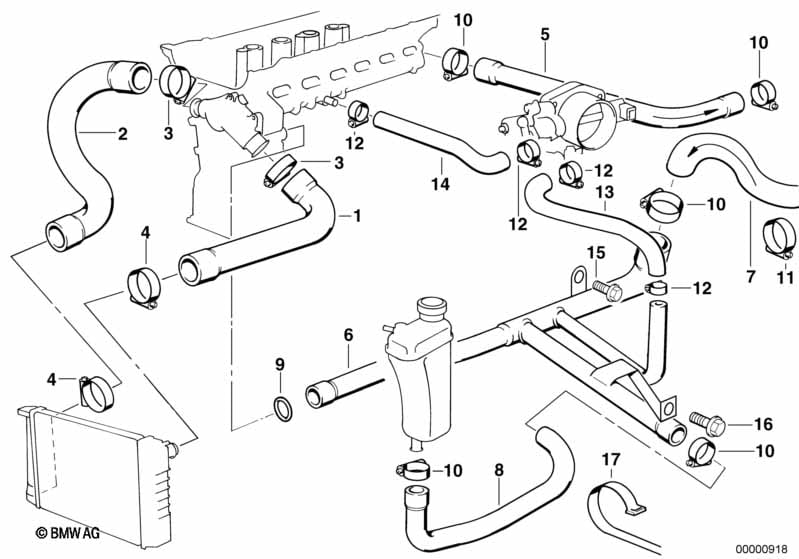

This Cooling System Water Hoses technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan or National version Australia or Hot-climate version |
L807A=Yes L810A=Yes S823A=Yes |
|||||||||
| 01 | Water hose | 1 | 11531708499 | $22.64 | Shop at ECS Tuning | |||||
| 02 | Water hose | 1 | 11531726344 | $26.42 | +core | Shop at ECS Tuning | ||||
| 03 | Hose clamp | L=47-54MM | 2 | 07129952121 | $1.42 | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L42-48 | 2 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 05 | Hose f engine inlet and water valve | 1 | 64211394293 | $19.95 | Shop at ECS Tuning | |||||
| 06 | Heater return pipe | 1 | 09/1995 | 11531433059 | $107.50 | Shop at ECS Tuning | ||||
| 07 | Hose f radiator and engine return | 1 | 11531703844 | $10.76 | Shop at ECS Tuning | |||||
| 08 | Return hose | 1 | 11531740649 | $17.58 | Shop at ECS Tuning | |||||
| 09 | O-ring | 18,2X3 | 2 | 11531703848 | $1.25 | Shop at ECS Tuning | ||||
| 10 | Hose clamp | L28-33 | 5 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 11 | Hose clamp | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 12 | Hose clamp | L15-18 | 4 | 11151727509 | $1.02 | Shop at ECS Tuning | ||||
| 13 | Hose | 1 | 13541703945 | $7.73 | Shop at ECS Tuning | |||||
| 14 | Hose | 1 | 13541703865 | $14.87 | Shop at ECS Tuning | |||||
| 16 | Hex bolt with washer | M8X16 | 1 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 17 | Cable strap with bracket | Ø=7,7 / L=200 | 2 | 61136924664 | $0.55 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 320i Cooling System Water Hoses?
- This technical diagram illustrates the Cooling System Water Hoses within the Engine group for the 3 Series E36 320i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Water hose (Part #11531708499).
- Which models use the hardware listed in this Cooling System Water Hoses?
- The hardware and components featured in the Cooling System Water Hoses are specific to the 3 Series E36 320i produced during 1998. These technical specifications ensure that parts like the Water hose (11531708499) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling System Water Hoses assembly?
- Each item in the Cooling System Water Hoses corresponds to the numbered list below the illustration. For the 3 Series E36 320i, you can identify the Water hose by locating its position on the schematic, which then links to the official BMW part number 11531708499 for the Engine section.
