Cylinder Head Attached Parts for BMW 3 Series E36 328i (1998)

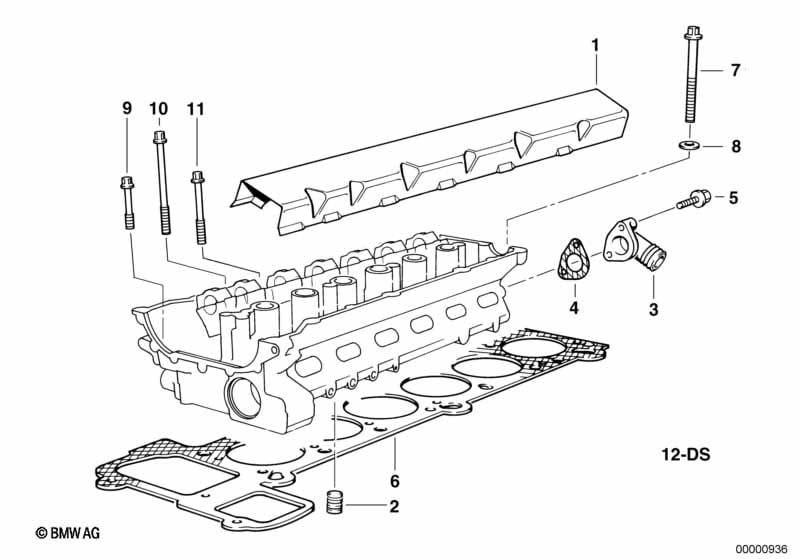

This Cylinder Head Attached Parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover | 1 | 11121740163 | $21.56 | Shop at ECS Tuning | |||||
| 02 | non-return valve | 1 | 11121735180 | $16.11 | Shop at ECS Tuning | |||||
| 03 | Flange | 1 | 11121717432 | $10.52 | Shop at ECS Tuning | |||||
| 04 | Gasket Asbestos Free | 1 | 11121738963 | $3.38 | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M6X30-ZNNIV SI | 2 | 07119906123 | $0.81 | Shop at ECS Tuning | ||||
| 06 | Cylinder Head Gasket Asbestos-Free | 1,75 MM | 1 | 11121726619 | Shop at ECS Tuning | |||||
| 06 | Cylinder Head Gasket Asbestos-Free | 2,05 MM | 1 | 11121726622 | Shop at ECS Tuning | |||||
| 07 | Set Bolt Cylinder Head | M10X110 | 1 | 11121740065 | $43.02 | Shop at ECS Tuning | ||||
| only applies to special engine with grey cast-iron crankcase |
||||||||||
| 07 | Set Bolt Cylinder Head | M10X95 | 1 | 11121721938 | $43.02 | Shop at ECS Tuning | ||||
| 08 | Washer | X | 09/1998 | 11127550856 | $0.65 | Shop at ECS Tuning | ||||
| 09 | Torx bolt | M6X50 | 1 | 11121726397 | $1.07 | Shop at ECS Tuning | ||||
| 10 | Torx bolt | M6X70 | 1 | 11121720729 | $1.07 | ENDED | Shop at ECS Tuning | |||
| 11 | Torx bolt | M6X100 | 1 | 11121720731 | $1.62 | ENDED | Shop at ECS Tuning | |||
| 12 | Gasket Set Cylinder Head Asbestos Free | 1 | 09/1995 | 11121427826 | $329.80 | Shop at ECS Tuning | ||||
