Engine Block Mounting Parts for BMW 3 Series E36 328i (1999)

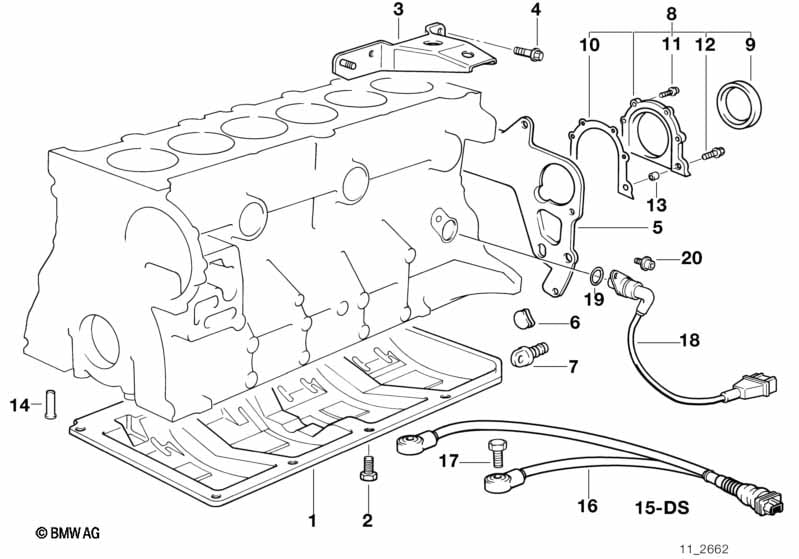

This Engine Block Mounting Parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil deflector | 1 | 11131433060 | $32.22 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt with washer | M6X12-U1-8.8 | X | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 03 | Bracket | 1 | 11111703857 | $7.62 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M8X16 | 2 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Covering plate | 1 | 11142243305 | $11.15 | ENDED | Shop at ECS Tuning | ||||
| 06 | Cover lid | 1 | 11141730453 | $3.22 | Shop at ECS Tuning | |||||
| 07 | Blind plug | 11,50MM | 1 | 11111714541 | $1.60 | Shop at ECS Tuning | ||||
| 08 | Set of covers | 1 | 11142247867 | $94.60 | ENDED | Shop at ECS Tuning | ||||
| 09 | Shaft seal | 90X110X12 | 1 | 11142249533 | $58.96 | Shop at ECS Tuning | ||||
| 10 | Gasket Steel | 1 | 11141432240 | $3.10 | Shop at ECS Tuning | |||||
| 11 | Hex bolt with washer | M6X25-ZNNIV SI | 4 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 12 | Hex bolt with washer | M8X28-ZNNIV SI | 2 | 07119905530 | $0.71 | Shop at ECS Tuning | ||||
| 13 | Dowel | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 14 | Oil Spraying Nozzle | 6 | 11421748199 | $14.97 | Shop at ECS Tuning | |||||
| 15 | Gasket Set Engine Block Asbesto Free | 1 | 11111740981 | $143.35 | Shop at ECS Tuning | |||||
| 16 | Ping Sensor | 1 | 12141703276 | $90.58 | Shop at ECS Tuning | |||||
| 17 | Hex bolt | M8X30-ZN | 2 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| 18 | Pulse generator, crankshaft | 1 | 11/1998 | 12141709616 | $116.05 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Adapter lead | 1 | 11/1998 | 12514592703 | $40.88 | SI 122701000 | Shop at ECS Tuning | |||
| 19 | O-ring | 17X3 | 1 | 12141748398 | $1.20 | Shop at ECS Tuning | ||||
| 20 | Fillister-head screw | M6X16ZNNIV SI | 1 | 13627545338 | $0.47 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
