Intake manifold system for BMW 3 Series E36 318i (1999)

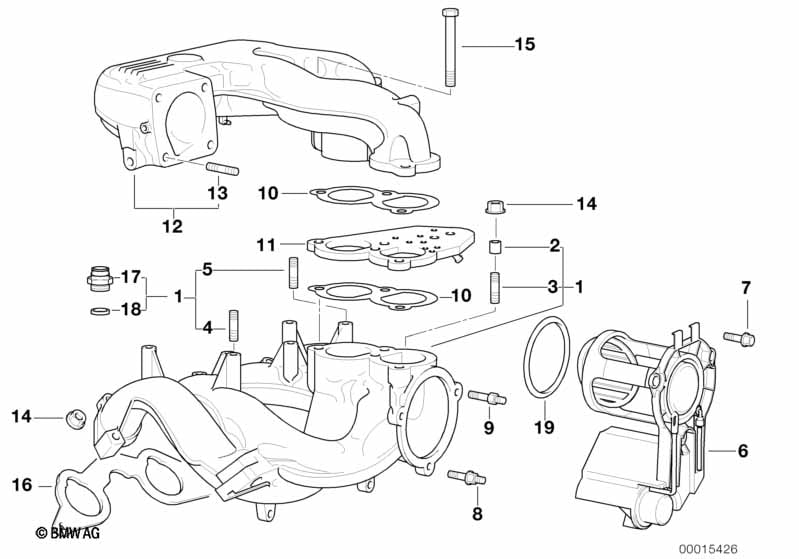

This Intake manifold system technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake manifold lower part | 1 | 09/1995 | 11611247493 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Dowel | D=9,5MM | 2 | 09/1995 | 11611739554 | $6.68 | Shop at ECS Tuning | |||
| 03 | Stud bolt | M7X55 | 2 | 09/1995 | 07129908122 | $0.29 | Shop at ECS Tuning | |||
| 04 | Stud bolt | M6X25-ZN | 2 | 09/1995 | 07129908100 | $0.20 | Shop at ECS Tuning | |||
| 05 | Stud bolt | M7X30 | 1 | 09/1995 | 07129908125 | $0.96 | Shop at ECS Tuning | |||
| 06 | Adjuster unit | 1 | 09/1995 | 11611438404 | $195.92 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X18-U1 | 2 | 09/1995 | 07119905399 | $0.36 | Shop at ECS Tuning | |||
| 08 | Stud bolt | 1 | 09/1995 | 11611247343 | $0.82 | Shop at ECS Tuning | ||||
| 09 | Stud bolt | M6 | 2 | 09/1995 | 11611734482 | ENDED | Shop at ECS Tuning | |||
| 10 | Gasket Steel | 2 | 09/1995 | 11611247478 | $6.08 | Shop at ECS Tuning | ||||
| 11 | Flange | 1 | 09/1995 | 11611247772 | Shop at ECS Tuning | |||||
| 12 | Intake manifold upper part | 1 | 09/1995 | 11611247515 | +core | Shop at ECS Tuning | ||||
| 13 | Stud bolt | M6X35-ZNS3 | 4 | 09/1995 | 07129903886 | Shop at ECS Tuning | ||||
| 14 | Flange nut | M7 | 7 | 09/1995 | 11617545279 | $0.47 | Shop at ECS Tuning | |||
| 15 | Hex bolt with washer | M7X100-Z1 | 1 | 09/1995 | 07119901683 | $1.07 | Shop at ECS Tuning | |||
| 16 | Gasket Asbestos Free | 1 | 09/1995 | 11611734683 | $10.25 | Shop at ECS Tuning | ||||
| 19 | O-ring | 75X2,5 | 1 | 11/1997 | 11611437691 | $5.62 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
