Cylinder head cover for BMW 3 Series E36 325tds (1999)

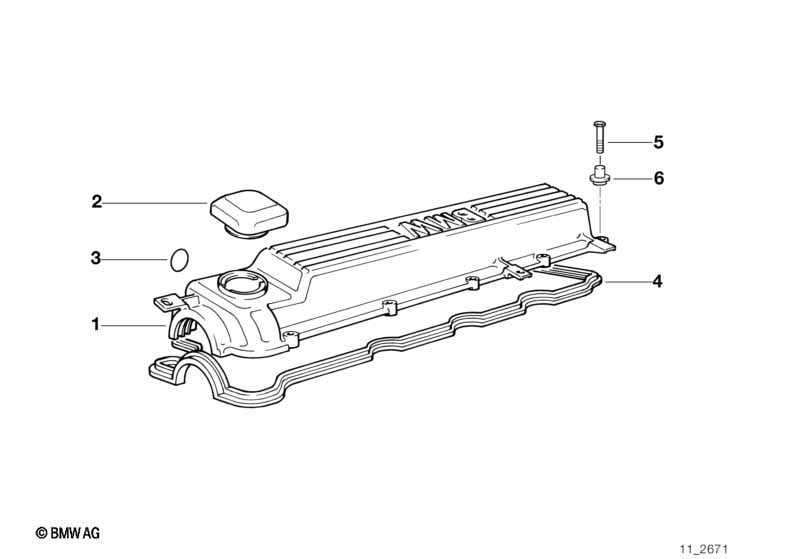

This Cylinder head cover technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder head cover | 1 | 01/1996 | 11122246330 | $270.39 | +core | Shop at ECS Tuning | |||
| 02 | Cap for oil filler | 1 | 01/1996 | 11127509328 | $7.78 | Shop at ECS Tuning | ||||
| 03 | O-ring | 19,0X2,5MM | 1 | 01/1996 | 11532248435 | Shop at ECS Tuning | ||||
| 04 | Profile-gasket | 1 | 01/1996 | 11122245686 | $20.81 | ENDED | Shop at ECS Tuning | |||
| 05 | Torx bolt | M7X34 | 10 | 01/1996 | 11122245843 | Shop at ECS Tuning | ||||
| 06 | Rubber seal | 10 | 01/1996 | 11122245844 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
