Lubrication system-Oil filter for BMW 3 Series E36 325td (1998)

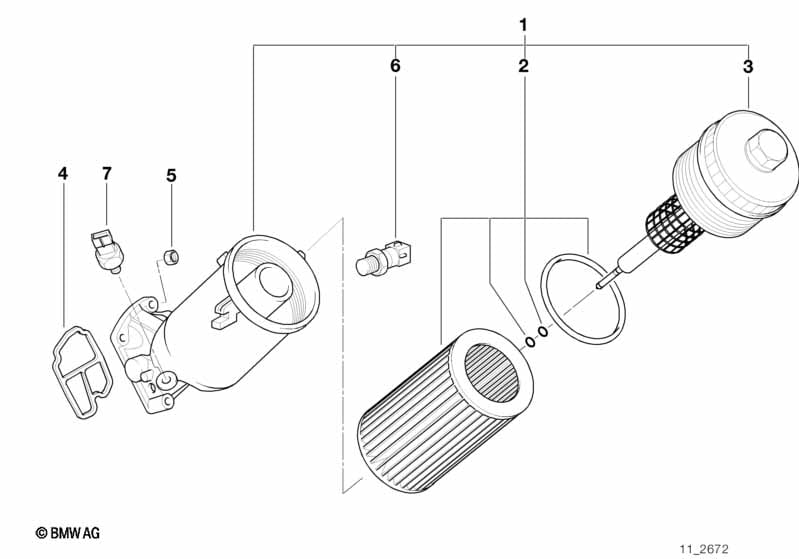

This Lubrication system-Oil filter technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil filter with oil cooler connection | 1 | 01/1996 | 11422246395 | $261.14 | +core | Shop at ECS Tuning | |||
| 02 | Set oil-filter element | 1 | 01/1996 | 11422246131 | $21.65 | Shop at ECS Tuning | ||||
| 03 | Oil filter cover | 1 | 01/1996 | 11422246171 | $42.10 | +core | Shop at ECS Tuning | |||
| 04 | Gasket Steel | 1 | 01/1996 | 11422245842 | $6.08 | Shop at ECS Tuning | ||||
| 05 | Hex nut wiht flange | M8 | 4 | 01/1996 | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | ||
| 06 | Oil pressure switch | M12X1,5 | 1 | 01/1996 | 12618611273 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
