Belt Drive Water Pump/Alternator for BMW 3 Series E36 318i (1996)

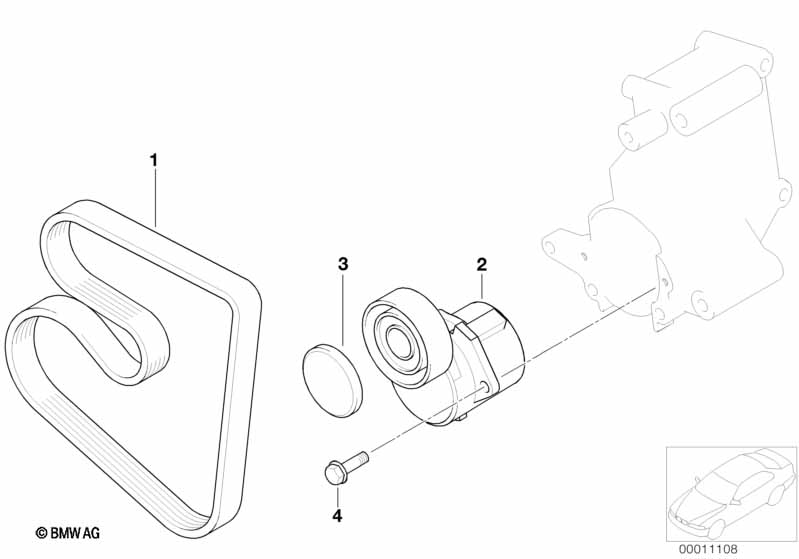

This Belt Drive Water Pump/Alternator technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ALTERNATOR 70A | |||||||||
| 01 | Ribbed v-belt | 6PK X 1733 | 1 | 11281437369 | $45.22 | Shop at ECS Tuning | ||||
| 02 | Mechanical belt tensioner | 1 | 09/1997 | 11281432104 | $101.95 | Shop at ECS Tuning | ||||
| 03 | Protection cap adjusting pulley | 1 | 09/1997 | 11281727159 | $2.37 | Shop at ECS Tuning | ||||
| 04 | Fillister head with washer | M8X30-U1-ZNS3 | 2 | 07119905720 | $0.47 | Shop at ECS Tuning | ||||
