Exhaust turbocharger with lubrication for BMW 3 Series E36 325tds (1999)

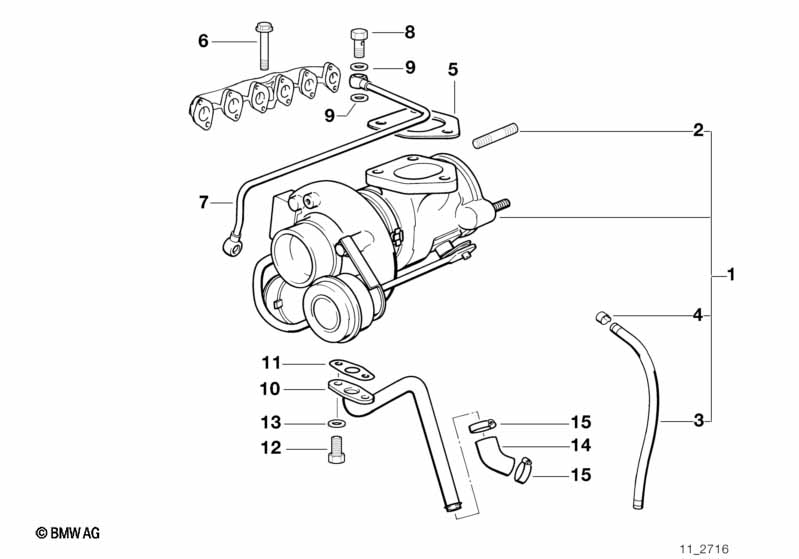

This Exhaust turbocharger with lubrication technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Turbo charger | 1 | 11652246477 | ENDED, +core | Shop at ECS Tuning | |||||
| 02 | Stud bolt | M10X90 | 2 | 11652242430 | $11.20 | Shop at ECS Tuning | ||||
| 03 | Hose | 1 | 11652245837 | ENDED | Shop at ECS Tuning | |||||
| 04 | Hose clamp | 11,1-13,1 | 2 | 11731277848 | $2.02 | Shop at ECS Tuning | ||||
| 05 | Gasket Asbestos Free | 1 | 11622244515 | $11.90 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Screw | M10X25 | 3 | 11652243402 | $5.37 | Shop at ECS Tuning | ||||
| 05 | Gasket Asbestos Free | 1 | 11622244516 | ENDED | Shop at ECS Tuning | |||||
| 06 | Screw | M10X25 | 3 | 11652243402 | $5.37 | Shop at ECS Tuning | ||||
| 07 | Oil pipe | 1 | 11422244507 | $27.90 | Shop at ECS Tuning | |||||
| 08 | Hollow bolt | M10X1-ZNNIV SI | 2 | 07119907291 | Shop at ECS Tuning | |||||
| 09 | Gasket ring | A10X13,5-CU | 4 | 07119963072 | $0.11 | Shop at ECS Tuning | ||||
| 10 | Return pipe | 1 | 11422245204 | $31.87 | Shop at ECS Tuning | |||||
| 11 | Gasket Asbestos Free | 1 | 11422246091 | $1.19 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | M6X14-ZNNIV SI | 2 | 07119905964 | Shop at ECS Tuning | |||||
| 13 | Washer | 2 | 11621274378 | $0.22 | Shop at ECS Tuning | |||||
| 14 | Hose | 1 | 11427796055 | $15.63 | Shop at ECS Tuning | |||||
| 15 | Hose clamp | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
