Short engine for BMW 3 Series E36 318is (1998)

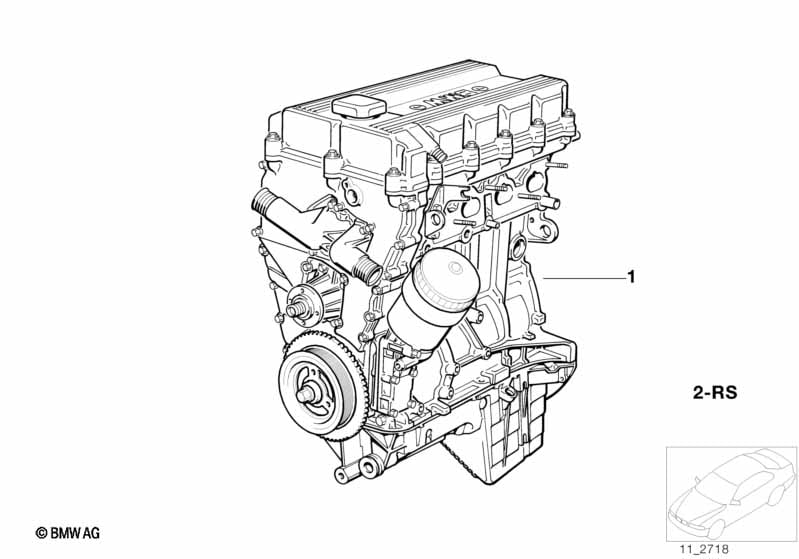

This Short engine technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Short engine | 194S1 | 1 | 11001743675 | +core | Shop at ECS Tuning | ||||
| 01 | Short engine | 194S1 | 1 | 11001743676 | $4173.84 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Set Mounting Parts Short Engine | 1 | 11009070614 | $65.38 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318is Short engine?
- This technical diagram illustrates the Short engine within the Engine group for the 3 Series E36 318is produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Short engine (Part #11001743675).
- Which models use the hardware listed in this Short engine?
- The hardware and components featured in the Short engine are specific to the 3 Series E36 318is produced during 1998. These technical specifications ensure that parts like the Short engine (11001743675) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Short engine assembly?
- Each item in the Short engine corresponds to the numbered list below the illustration. For the 3 Series E36 318is, you can identify the Short engine by locating its position on the schematic, which then links to the official BMW part number 11001743675 for the Engine section.
