Cylinder Head for BMW 3 Series E36 318is (1998)

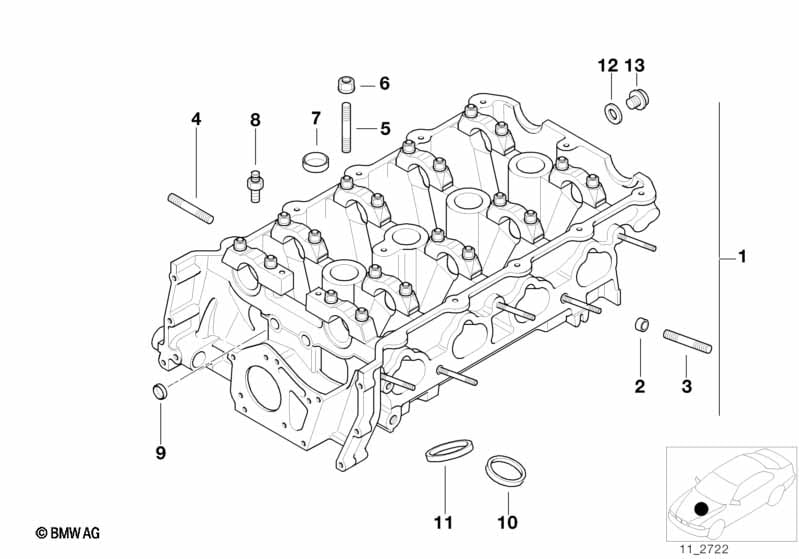

This Cylinder Head technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder Head | 1 | 11121433913 | $1877.55 | +core | Shop at ECS Tuning | ||||
| 02 | Dowel | D=9,5MM | 2 | 11121713264 | $3.48 | Shop at ECS Tuning | ||||
| 03 | Stud bolt | M7X55 | 5 | 07129908122 | $0.29 | Shop at ECS Tuning | ||||
| 04 | Stud bolt | M7X42 | 12 | 11121744057 | $0.35 | Shop at ECS Tuning | ||||
| 05 | Stud bolt | M7X55 | X | 07129908122 | $0.29 | Shop at ECS Tuning | ||||
| 06 | Flange nut | M7 | X | 11617545279 | $0.47 | Shop at ECS Tuning | ||||
| 07 | Cover lid | D=20MM | 1 | 07119937271 | $0.44 | Shop at ECS Tuning | ||||
| 08 | Hollow bolt | 1 | 11121247985 | $3.68 | Shop at ECS Tuning | |||||
| 09 | Cover lid | D=12MM | 2 | 07119906393 | Shop at ECS Tuning | |||||
| 10 | Valve Seat Ring Intake | 34,5MM(+0,4) | 8 | 11121435921 | ENDED | Shop at ECS Tuning | ||||
| 11 | Valve Seat Ring Exhaust | 32,00MM(+0,4) | 8 | 11121435924 | Shop at ECS Tuning | |||||
| 12 | Gasket ring | A12X15,5 AL | 2 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| 13 | Screw plug | M12X1,5-ZNNIV | 2 | 07119904550 | $8.15 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318is Cylinder Head?
- This technical diagram illustrates the Cylinder Head within the Engine group for the 3 Series E36 318is produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Cylinder Head (Part #11121433913).
- Which models use the hardware listed in this Cylinder Head?
- The hardware and components featured in the Cylinder Head are specific to the 3 Series E36 318is produced during 1998. These technical specifications ensure that parts like the Cylinder Head (11121433913) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder Head assembly?
- Each item in the Cylinder Head corresponds to the numbered list below the illustration. For the 3 Series E36 318is, you can identify the Cylinder Head by locating its position on the schematic, which then links to the official BMW part number 11121433913 for the Engine section.
