Cylinder Head Attached Parts for BMW 3 Series E36 318is (1999)

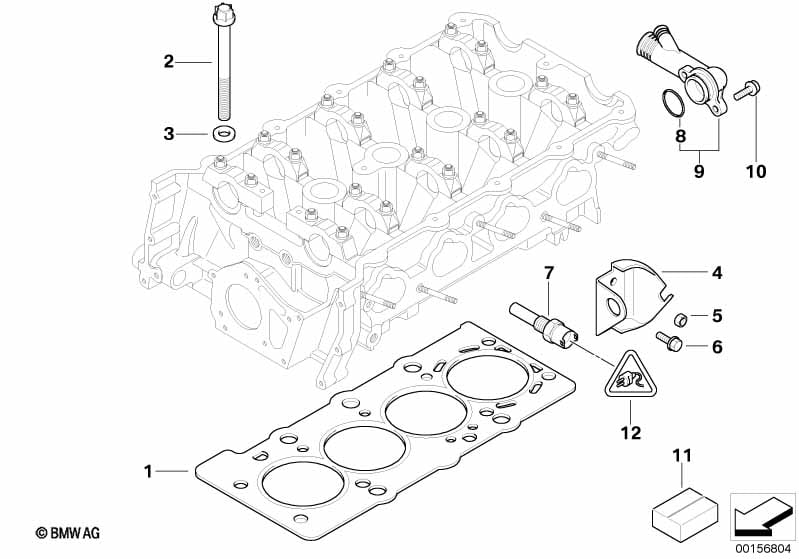

This Cylinder Head Attached Parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder Head Gasket Asbestos-Free | 1,74MM | 1 | 11121433950 | $71.98 | ENDED | Shop at ECS Tuning | |||
| 01 | Cylinder Head Gasket Asbestos-Free | 2,04MM(+0,3) | 1 | 11121433951 | $71.98 | ENDED | Shop at ECS Tuning | |||
| 02 | Set Bolt Cylinder Head | TORX | 1 | 11121721939 | $32.10 | Shop at ECS Tuning | ||||
| 03 | Washer | X | 11127550856 | $0.65 | Shop at ECS Tuning | |||||
| 04 | Shackle | 1 | 11611734361 | $5.58 | Shop at ECS Tuning | |||||
| 05 | Hex nut with plate | BM7 | 1 | 07129946307 | $0.62 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M8X22 | 2 | 07119905739 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Double temperature switch | 1 | 13621703993 | $21.80 | +core | Shop at ECS Tuning | ||||
| 08 | O-ring | 26,5X2,5 | 1 | 11511739691 | $1.88 | Shop at ECS Tuning | ||||
| 09 | Connector | 1 | 11531743679 | $11.83 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M6X20 | 2 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 11 | Gasket Set Cylinder Head Asbestos Free | 1 | 11129070615 | $287.52 | ENDED | Shop at ECS Tuning | ||||
| 12 | Plug housing | 4 POL. | 4 | 12521703571 | $3.07 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Circular connector | 0,5- 1,0 MM² | 1 | 61130007657 | $4.07 | Shop at ECS Tuning | ||||
| -- | Single conductor seal | 0,75-1,0MM² | 1 | 12521748973 | $0.13 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
