Crankshaft with bearing shells for BMW 3 Series E36 318ti (1999)

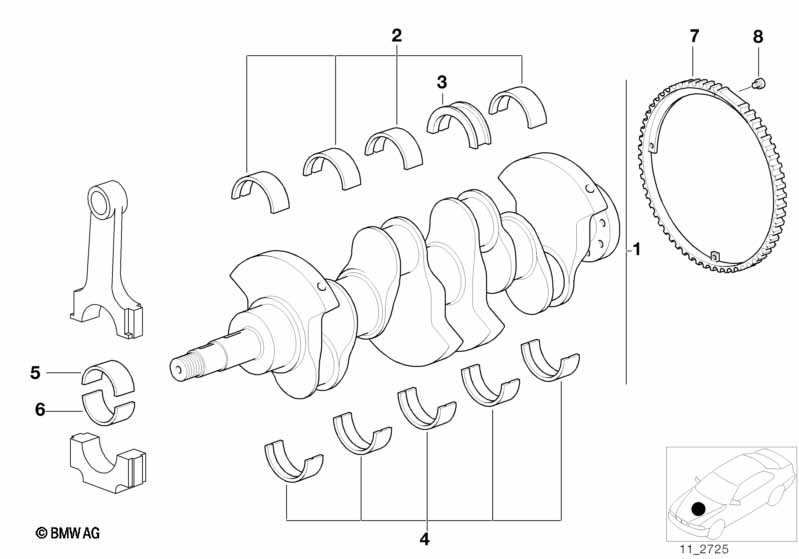

This Crankshaft with bearing shells technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Crankshaft without bearing shells | HUB 83,5 | 1 | 11211247503 | Shop at ECS Tuning | |||||
| 02 | Bearing shell yellow | 60,00MM(0) | 4 | 11211706847 | $16.27 | Shop at ECS Tuning | ||||
| 02 | Bearing shell green | 60,00MM(0) | 4 | 11211706848 | $16.27 | Shop at ECS Tuning | ||||
| 02 | Bearing shell white | 60,00MM(0) | 4 | 11211706849 | $16.27 | Shop at ECS Tuning | ||||
| 02 | Bearing shell yellow | 59,75MM(+0,25) | 4 | 11211706850 | $16.10 | Shop at ECS Tuning | ||||
| 02 | Bearing shell green | 59,75MM(+0,25) | 4 | 11211706851 | $15.88 | ENDED | Shop at ECS Tuning | |||
| 02 | Bearing shell white | 59,75MM(+0,25) | 4 | 11211706852 | $15.88 | Shop at ECS Tuning | ||||
| 02 | Bearing shell yellow | 59,50MM(+0,50) | 4 | 11211706864 | $15.88 | Shop at ECS Tuning | ||||
| 02 | Bearing shell green | 59,50MM(+0,50) | 4 | 11211706865 | $15.88 | Shop at ECS Tuning | ||||
| 02 | Bearing shell white | 59,50MM(+0,50) | 4 | 11211706866 | $16.74 | Shop at ECS Tuning | ||||
| 03 | Guide-bearing Shell yellow | 60,00MM(0) | 1 | 11211743457 | $27.36 | Shop at ECS Tuning | ||||
| 03 | Guide-bearing Shell green | 60,00MM(0) | 1 | 11211743458 | $27.36 | ENDED | Shop at ECS Tuning | |||
| 03 | Guide-bearing Shell white | 60,00MM(0) | 1 | 11211743459 | $27.36 | Shop at ECS Tuning | ||||
| 03 | Guide-bearing Shell yellow | 59,75MM(+0,25) | 1 | 11211743460 | $37.98 | Shop at ECS Tuning | ||||
| 03 | Guide-bearing Shell green | 59,75MM(+0,25) | 1 | 11211743461 | $37.98 | Shop at ECS Tuning | ||||
| 03 | Guide-bearing Shell white | 59,75MM(+0,25) | 1 | 11211743462 | $37.98 | Shop at ECS Tuning | ||||
| 03 | Guide-bearing Shell yellow | 59,50MM(+0,50) | 1 | 11211743463 | $37.98 | Shop at ECS Tuning | ||||
| 03 | Guide-bearing Shell green | 59,50MM(+0,50) | 1 | 11211743464 | $33.48 | ENDED | Shop at ECS Tuning | |||
| 03 | Guide-bearing Shell white | 59,50MM(+0,50) | 1 | 11211743465 | $33.48 | ENDED | Shop at ECS Tuning | |||
| 04 | Bearing shell yellow | 60,00MM(0) | 5 | 11211717526 | $16.27 | Shop at ECS Tuning | ||||
| 04 | Bearing shell green | 60,00MM(0) | 5 | 11211717527 | $16.27 | Shop at ECS Tuning | ||||
| 04 | Bearing shell white | 60,00MM(0) | 5 | 11211717528 | $16.27 | Shop at ECS Tuning | ||||
| 04 | Bearing shell yellow | 59,75MM(+0,25) | 5 | 11211717779 | $16.10 | Shop at ECS Tuning | ||||
| 04 | Bearing shell green | 59,75MM(+0,25) | 5 | 11211717780 | $15.88 | Shop at ECS Tuning | ||||
| 04 | Bearing shell white | 59,75MM(+0,25) | 5 | 11211717781 | $15.88 | Shop at ECS Tuning | ||||
| 04 | Bearing shell yellow | 59,50MM(+0,50) | 5 | 11211717782 | $15.88 | Shop at ECS Tuning | ||||
| 04 | Bearing shell green | 59,50MM(+0,50) | 5 | 11211717783 | $15.88 | Shop at ECS Tuning | ||||
| 04 | Bearing shell white | 59,50MM(+0,50) | 5 | 11211717784 | $16.74 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CONNECTING ROD |
||||||||||
| 05 | Bearing shell, blue | 45,00MM(0) | 4 | 11241284850 | $15.98 | Shop at ECS Tuning | ||||
| 05 | Bearing shell, blue | 44,75MM(+0,25) | 4 | 11241284852 | $21.31 | Shop at ECS Tuning | ||||
| 05 | Bearing shell, blue | 44,50MM(+0,50) | 4 | 11241284854 | $21.31 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO BEARING COVER |
||||||||||
| 06 | Bearing shell, red | 45,00MM(0) | 4 | 11241284849 | $16.49 | Shop at ECS Tuning | ||||
| 06 | Bearing shell, red | 44,75MM(+0,25) | 4 | 11241284851 | $13.27 | ENDED | Shop at ECS Tuning | |||
| 06 | Bearing shell, red | 44,50MM(+0,50) | 4 | 11241284853 | $13.27 | ENDED | Shop at ECS Tuning | |||
| 07 | Impulse sending wheel | 1 | 11211247050 | $37.12 | Shop at ECS Tuning | |||||
| 08 | Lock bolt | 4 | 11211739272 | $0.38 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
