Cylinder head cover for BMW 3 Series E36 328i (1999)

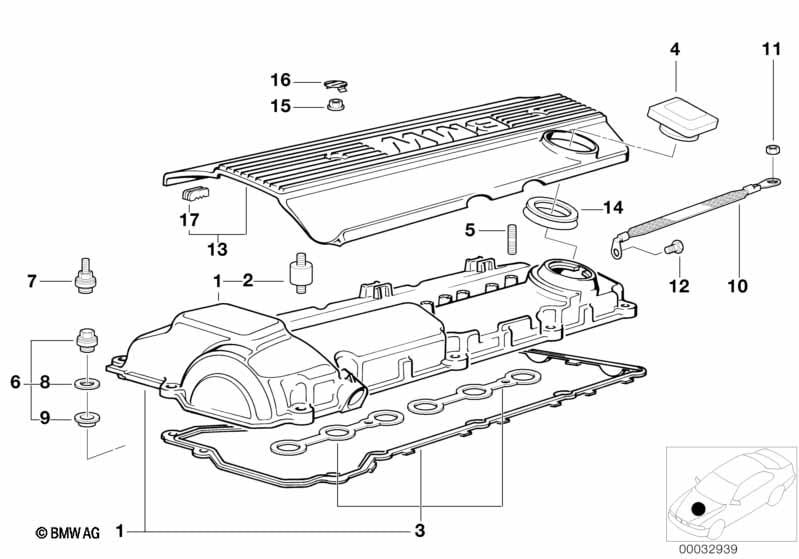

This Cylinder head cover technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder head cover | 1 | 09/1995 | 11121703341 | $216.50 | Shop at ECS Tuning | ||||
| 02 | Rubber Mounting | 2 | 11121730356 | $15.63 | Shop at ECS Tuning | |||||
| 03 | Set of profile gaskets | 1 | 09/1995 | 11120034108 | $41.77 | Shop at ECS Tuning | ||||
| 04 | Cap for oil filler | 1 | 11121743294 | $7.49 | Shop at ECS Tuning | |||||
| 04 | Cap for oil filler | 1 | 11127509328 | $7.78 | Shop at ECS Tuning | |||||
| 05 | Stud bolt | M6X30-ZNNIV SI | X | 08/2000 | 07129904544 | $1.42 | Shop at ECS Tuning | |||
| 06 | Cap nut | M6 | X | 11121738607 | $3.10 | ENDED | Shop at ECS Tuning | |||
| 07 | Cap nut | M6 | 4 | 05/1999 | 11121738608 | $3.17 | Shop at ECS Tuning | |||
| 08 | Washer | X | 11127838077 | $1.23 | Shop at ECS Tuning | |||||
| 09 | Rubber seal | X | 11121437395 | $1.17 | Shop at ECS Tuning | |||||
| 10 | Earth strap | 2 | 09/1995 | 12421437633 | $6.28 | Shop at ECS Tuning | ||||
| 11 | Hex nut | M5 | 2 | 07119905710 | $2.83 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M6X10-8.8-ZNS3 | 2 | 07119904633 | $0.20 | Shop at ECS Tuning | ||||
| 13 | Cover | 1 | 11121748633 | $106.44 | Shop at ECS Tuning | |||||
| 14 | Gasket ring | 1 | 11127526447 | $4.12 | Shop at ECS Tuning | |||||
| 15 | Hex nut with plate | AM6-8-ZNNIV SI | 2 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 16 | Cap | 2 | 11121726089 | $2.12 | Shop at ECS Tuning | |||||
| 17 | Distance rubber | 4 | 11121730352 | $1.87 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 328i Cylinder head cover?
- This technical diagram illustrates the Cylinder head cover within the Engine group for the 3 Series E36 328i produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Cylinder head cover (Part #11121703341).
- Which models use the hardware listed in this Cylinder head cover?
- The hardware and components featured in the Cylinder head cover are specific to the 3 Series E36 328i produced during 1999. These technical specifications ensure that parts like the Cylinder head cover (11121703341) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder head cover assembly?
- Each item in the Cylinder head cover corresponds to the numbered list below the illustration. For the 3 Series E36 328i, you can identify the Cylinder head cover by locating its position on the schematic, which then links to the official BMW part number 11121703341 for the Engine section.
