Belt Drive Climate Compressor for BMW 3 Series E36 318i (1996)

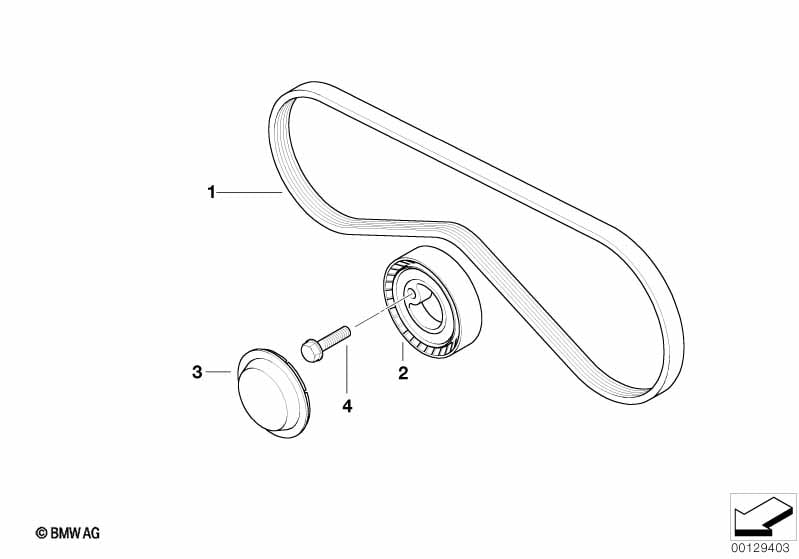

This Belt Drive Climate Compressor technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ribbed v-belt | 4K X 889 | 1 | 11281743193 | $22.68 | Shop at ECS Tuning | ||||
| 02 | Adjusting pulley | 1 | 11282245087 | $80.75 | Shop at ECS Tuning | |||||
| 03 | Protection cap adjusting pulley | 1 | 64551748384 | $15.32 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M8X35 | 1 | 07119913676 | $0.36 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318i Belt Drive Climate Compressor?
- This technical diagram illustrates the Belt Drive Climate Compressor within the Engine group for the 3 Series E36 318i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Ribbed v-belt (Part #11281743193).
- Which models use the hardware listed in this Belt Drive Climate Compressor?
- The hardware and components featured in the Belt Drive Climate Compressor are specific to the 3 Series E36 318i produced during 1996. These technical specifications ensure that parts like the Ribbed v-belt (11281743193) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Belt Drive Climate Compressor assembly?
- Each item in the Belt Drive Climate Compressor corresponds to the numbered list below the illustration. For the 3 Series E36 318i, you can identify the Ribbed v-belt by locating its position on the schematic, which then links to the official BMW part number 11281743193 for the Engine section.
