Cylinder head cover/Mounting parts for BMW 3 Series F30 LCI 320i (2016)

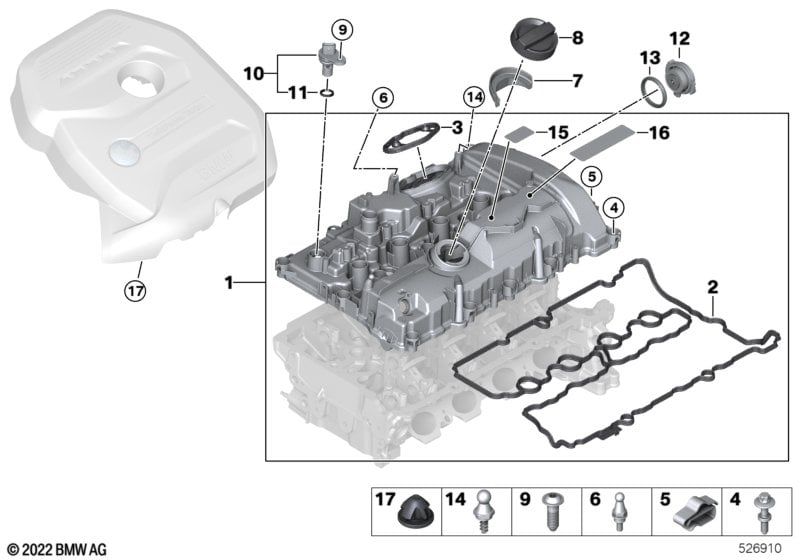

This Cylinder head cover/Mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder head cover | 1 | 11127611278 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Isa screw with washer | M6X25-U1 | 2 | 13517632572 | Shop at ECS Tuning | |||||
| -- | Profile-gasket | 1 | 11128618520 | Shop at ECS Tuning | ||||||
| 02 | Profile seal for cylinder head cover | 1 | 11128618519 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Isa screw with washer | M6X25-U1 | 2 | 13517632572 | Shop at ECS Tuning | |||||
| -- | Profile-gasket | 1 | 11128618520 | Shop at ECS Tuning | ||||||
| 03 | Profile-gasket | 1 | 11128618520 | Shop at ECS Tuning | ||||||
| 04 | Collar screw | M6X30 | 15 | 11129454322 | Shop at ECS Tuning | |||||
| 05 | Fixing clamp | 4 | 11127648915 | Shop at ECS Tuning | ||||||
| 05 | Fixing clamp | 4 | 11128642177 | Shop at ECS Tuning | ||||||
| 06 | Retaining pin | 1 | 11127643221 | Shop at ECS Tuning | ||||||
| 07 | Drip protection | 1 | 11128602238 | Shop at ECS Tuning | ||||||
| 08 | Cap for oil filler | 1 | 11128655331 | Shop at ECS Tuning | ||||||
| 09 | Torx-bolt for plastic material | TS5X20 | 2 | 07119907480 | Shop at ECS Tuning | |||||
| 10 | Camshaft position sensor | 2 | 13627633958 | Shop at ECS Tuning | ||||||
| 11 | O-ring | 18,2X2,5 | 2 | 13628658854 | Shop at ECS Tuning | |||||
| 12 | Actuator, VANOS | 2 | 11367614288 | Shop at ECS Tuning | ||||||
| 13 | Seal | 2 | 11365A65AB5 | Shop at ECS Tuning | ||||||
| 14 | Ball pin | 1 | 11127593207 | Shop at ECS Tuning | ||||||
| 15 | Sign high-pressure fuel system | 1 | 71227598859 | Shop at ECS Tuning | ||||||
| 16 | Label "Ignition Coil" | 1 | 71227618790 | Shop at ECS Tuning | ||||||
| 17 | Bump stop | 4 | 11127614138 | Shop at ECS Tuning | ||||||
