Cylinder Head/Mounting parts for BMW 4 Series F32 430iX (2017)

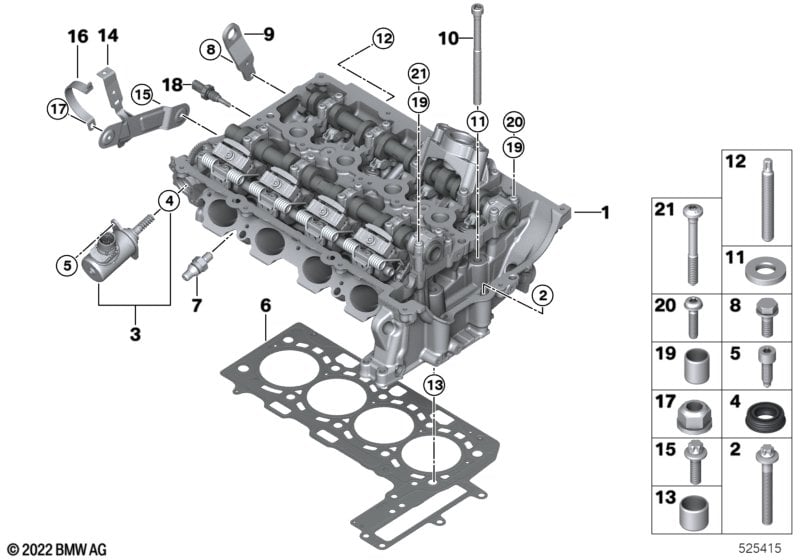

This Cylinder Head/Mounting parts technical drawing provides a detailed breakdown of the assembly for the 4 Series F32 430iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Observe Service Information Bulletin 64122020 |
||||||||||
| 01 | Cylinder head with valve gear | 1 | 07/2017 | 11128482778 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adjustment unit, inlet camshaft | 1 | 07/2017 | 11368684920 | Shop at ECS Tuning | |||||
| -- | Adjustment unit, outlet camshaft | 1 | 07/2017 | 11368684921 | Shop at ECS Tuning | |||||
| -- | VANOS central valve | M21 | 2 | 07/2017 | 11368696446 | Shop at ECS Tuning | ||||
| -- | Dowel pin | 4X16MM | 2 | 07/2017 | 07119942082 | Shop at ECS Tuning | ||||
| 02 | ASA-Bolt | M8X40 | 5 | 07119907475 | Shop at ECS Tuning | |||||
| 03 | Actuator | 1 | 11378652738 | Shop at ECS Tuning | ||||||
| 04 | Shaft seal | 1 | 11378662525 | Shop at ECS Tuning | ||||||
| 05 | ISA screw | M6X16-8.8-ZNNIV | 2 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 06 | Cylinder Head Gasket Asbestos-Free | 0,70MM | 1 | 11128654272 | Shop at ECS Tuning | |||||
| 06 | Cylinder Head Gasket Asbestos-Free | 1,00MM (+0,3) | 1 | 11128654273 | Shop at ECS Tuning | |||||
| 07 | Air-discharge fitting with O-ring | 1 | 11128626622 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt with washer | M8X22 | 2 | 07119905739 | $0.62 | Shop at ECS Tuning | ||||
| 09 | Loop | 1 | 11127638711 | Shop at ECS Tuning | ||||||
| 10 | Cylinder head bolt | M11X188 | 10 | 11128644675 | Shop at ECS Tuning | |||||
| 11 | Washer | 10 | 11127583138 | $6.05 | Shop at ECS Tuning | |||||
| 12 | ASA-stud bolt | M7X47-10.9-PHR | 4 | 11127647711 | Shop at ECS Tuning | |||||
| 13 | Dowel | D=14,5MM | 2 | 11112245180 | $1.65 | Shop at ECS Tuning | ||||
| 14 | Bracket for coolant pump, electric | 1 | 11518625682 | Shop at ECS Tuning | ||||||
| 15 | Star-socket screw | M6X16-ZNNIV SI | 2 | 07119907463 | Shop at ECS Tuning | |||||
| 16 | Support | 1 | 11518646487 | Shop at ECS Tuning | ||||||
| 17 | Hex nut | AM6-8-ZNNIV SI | 1 | 07129905471 | $0.64 | Shop at ECS Tuning | ||||
| 18 | Temperature sensor, cylinder head | 1 | 13628649765 | Shop at ECS Tuning | ||||||
| 19 | Dowel | D=7,5MM | 15 | 11127606504 | Shop at ECS Tuning | |||||
| Attention! Observe repair manual.Changed tightening process. |
||||||||||
| 20 | Countersunk screw | M6X35-8.8 | 22 | 07119907886 | Shop at ECS Tuning | |||||
| 20 | Countersunk screw | M6X35-10.9 | 18 | 07119909683 | Shop at ECS Tuning | |||||
| 21 | Countersunk screw | M6X65-8.8 | 5 | 07119907887 | Shop at ECS Tuning | |||||
| 21 | Countersunk screw | M6X65-10.9 | 9 | 07149844207 | Shop at ECS Tuning | |||||
