Flywheel for BMW 7 Series G12 730Li (2019)

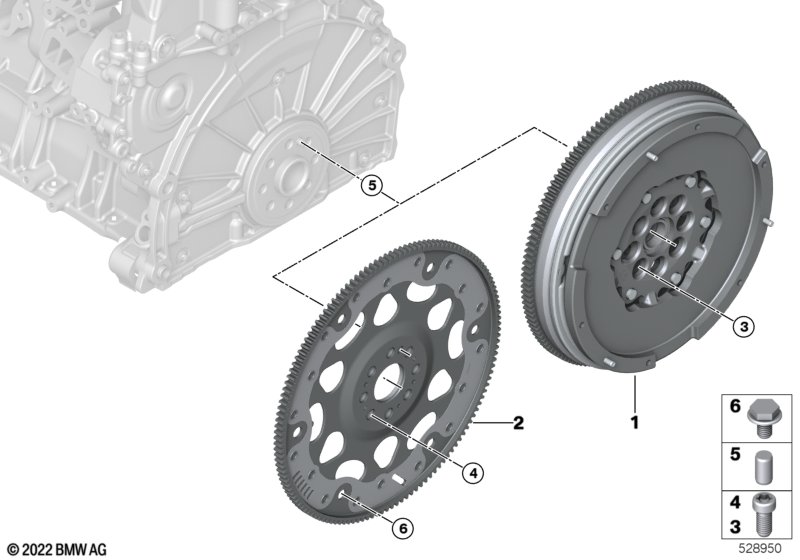

This Flywheel technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 730Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Flywheel automatic | 1 | 11228612144 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Hex bolt | M12X1.5X25.5 | 8 | 11227797966 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M12X1.5X25.5 | 8 | 11227797966 | Shop at ECS Tuning | |||||
| 05 | Pin | 8X14 | 1 | 11217797978 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M10X17,5Z1-10.9 | 1 | 24407561393 | $1.68 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G12 730Li Flywheel?
- This technical diagram illustrates the Flywheel within the Engine group for the 7 Series G12 730Li produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Flywheel automatic (Part #11228612144).
- Which models use the hardware listed in this Flywheel?
- The hardware and components featured in the Flywheel are specific to the 7 Series G12 730Li produced during 2019. These technical specifications ensure that parts like the Flywheel automatic (11228612144) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Flywheel assembly?
- Each item in the Flywheel corresponds to the numbered list below the illustration. For the 7 Series G12 730Li, you can identify the Flywheel automatic by locating its position on the schematic, which then links to the official BMW part number 11228612144 for the Engine section.
