Cooling system-thermostat housing for BMW 4 Series F32 LCI 420i (2020)

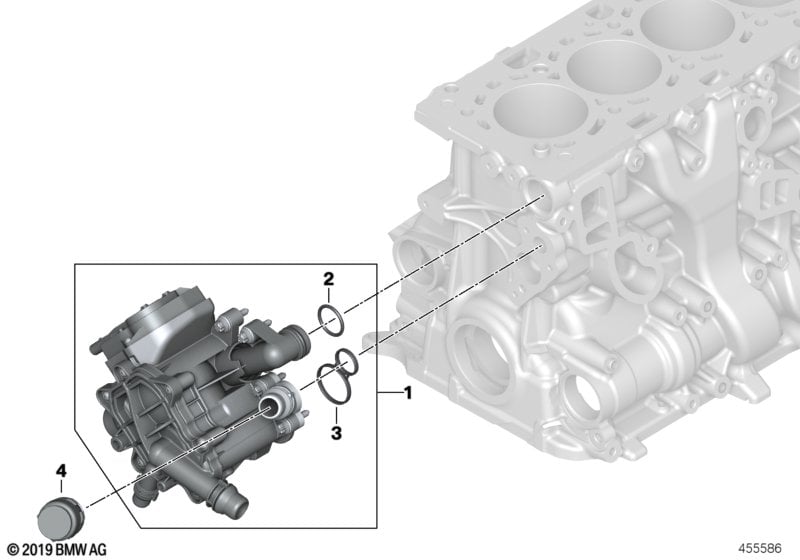

This Cooling system-thermostat housing technical drawing provides a detailed breakdown of the assembly for the 4 Series F32 LCI 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heat management module | 1 | 11537644811 | Shop at ECS Tuning | ||||||
| 02 | O-ring | 1 | 11538658573 | Shop at ECS Tuning | ||||||
| 03 | Gasket | 1 | 11538658574 | Shop at ECS Tuning | ||||||
| For vehicles with Increased towing capability and Hot-climate version |
S233A=No S823A=No |
|||||||||
| 04 | Lock | 1 | 17127799184 | $5.02 | +core | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series F32 LCI 420i Cooling system-thermostat housing?
- This technical diagram illustrates the Cooling system-thermostat housing within the Engine group for the 4 Series F32 LCI 420i produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Heat management module (Part #11537644811).
- Which models use the hardware listed in this Cooling system-thermostat housing?
- The hardware and components featured in the Cooling system-thermostat housing are specific to the 4 Series F32 LCI 420i produced during 2020. These technical specifications ensure that parts like the Heat management module (11537644811) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling system-thermostat housing assembly?
- Each item in the Cooling system-thermostat housing corresponds to the numbered list below the illustration. For the 4 Series F32 LCI 420i, you can identify the Heat management module by locating its position on the schematic, which then links to the official BMW part number 11537644811 for the Engine section.
