Cylinder head cover/Mounting parts for BMW 3 Series F30 LCI 340i (2018)

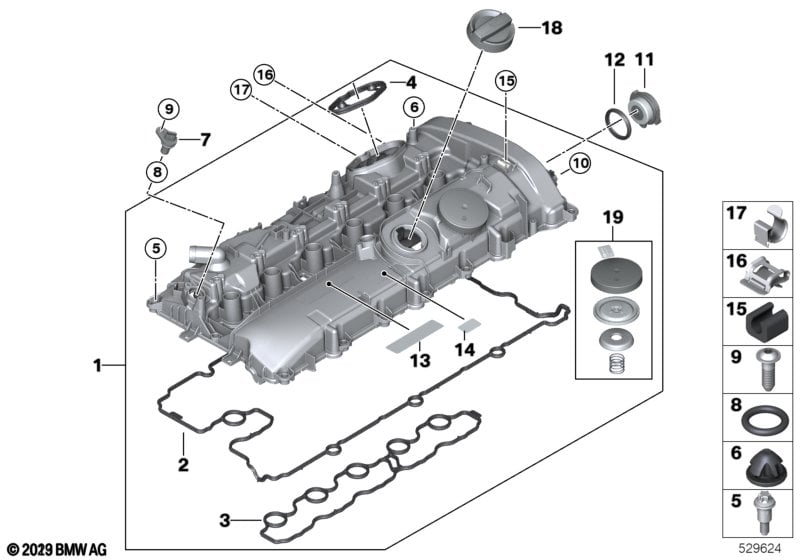

This Cylinder head cover/Mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 LCI 340i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Observe service solution 20000813305028. Observe service solution 20000889781031. |
||||||||||
| 01 | Cylinder head cover | 1 | 11127645173 | Shop at ECS Tuning | ||||||
| 02 | Profile seal, cylinder head cover, outer | 1 | 11128621951 | Shop at ECS Tuning | ||||||
| 03 | Profile seal for cyl. head cover, inner | 1 | 11128638124 | Shop at ECS Tuning | ||||||
| 04 | Profile-gasket | 1 | 11128633750 | Shop at ECS Tuning | ||||||
| 05 | ASA-Bolt | 21 | 11128642280 | Shop at ECS Tuning | ||||||
| 06 | Bump stop | 4 | 11127614138 | Shop at ECS Tuning | ||||||
| 07 | Camshaft position sensor | 2 | 13627633958 | Shop at ECS Tuning | ||||||
| 08 | O-ring | 18,2X2,5 | 2 | 13628658854 | Shop at ECS Tuning | |||||
| 09 | Torx-bolt for plastic material | TS5X20 | 2 | 07119907480 | Shop at ECS Tuning | |||||
| 10 | Fixing clamp | 4 | 11127648915 | Shop at ECS Tuning | ||||||
| 10 | Fixing clamp | 4 | 11128642177 | Shop at ECS Tuning | ||||||
| 11 | Actuator, VANOS | 2 | 11367614288 | Shop at ECS Tuning | ||||||
| 12 | Seal | 2 | 11365A65AB5 | Shop at ECS Tuning | ||||||
| 13 | Sign high-pressure fuel system | 1 | 71227598859 | Shop at ECS Tuning | ||||||
| 14 | Label "Ignition Coil" | 1 | 71227618790 | Shop at ECS Tuning | ||||||
| 15 | Damper rubber | 1 | 13537639983 | Shop at ECS Tuning | ||||||
| 16 | Cable holder | 1 | 07146976165 | $0.66 | Shop at ECS Tuning | |||||
| 17 | Cable clamp | 1 | 09/2024 | 11787549563 | $1.04 | Shop at ECS Tuning | ||||
| 17 | Clip | 15-19 | 1 | 07147568538 | $3.49 | Shop at ECS Tuning | ||||
| 18 | Cap for oil filler | 1 | 11128655331 | Shop at ECS Tuning | ||||||
| 19 | Repair kit pressure control valve B58 | 1 | 11121025447 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series F30 LCI 340i Cylinder head cover/Mounting parts?
- This technical diagram illustrates the Cylinder head cover/Mounting parts within the Engine group for the 3 Series F30 LCI 340i produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Cylinder head cover (Part #11127645173).
- Which models use the hardware listed in this Cylinder head cover/Mounting parts?
- The hardware and components featured in the Cylinder head cover/Mounting parts are specific to the 3 Series F30 LCI 340i produced during 2018. These technical specifications ensure that parts like the Cylinder head cover (11127645173) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder head cover/Mounting parts assembly?
- Each item in the Cylinder head cover/Mounting parts corresponds to the numbered list below the illustration. For the 3 Series F30 LCI 340i, you can identify the Cylinder head cover by locating its position on the schematic, which then links to the official BMW part number 11127645173 for the Engine section.
