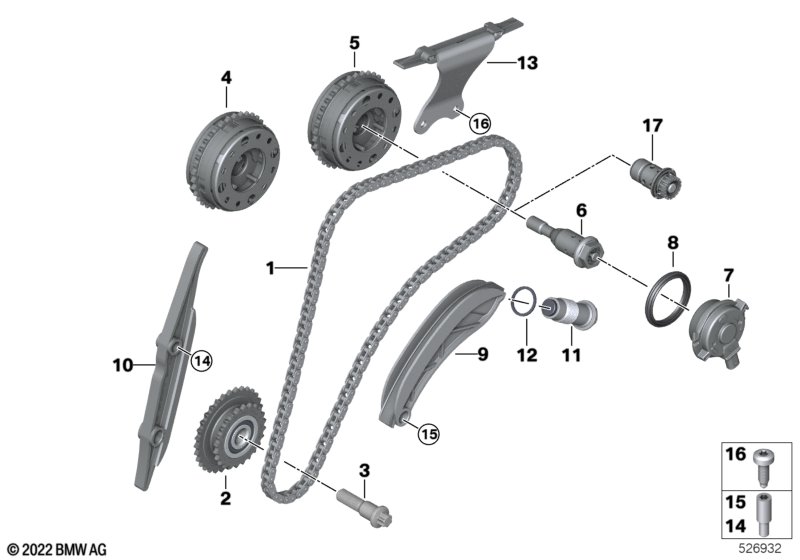

This timing gear timing chain top - VANOS technical drawing provides a detailed breakdown of the assembly for the 4 Series F33 440iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.

No.	Description	Supp.	Qty	Up To	Part Number
01	Timing chain		1		11318648729	Shop at ECS Tuning
02	Sprocket		1		13528642165	Shop at ECS Tuning
03	Bearing screw	M12X1	1		13527617486	Shop at ECS Tuning
	Observe Service Information Bulletin 64122020 Observe repair manual.
04	Adjustment unit, inlet camshaft		1	07/2017	11368617692	Shop at ECS Tuning
05	Adjustment unit, outlet camshaft		1	07/2017	11368617693	Shop at ECS Tuning
06	Central valve VANOS short	M22	2	07/2017	11368617694	Shop at ECS Tuning
07	Actuator, VANOS		2		11367614288	Shop at ECS Tuning
08	Seal		2		11365A65AB5	Shop at ECS Tuning
09	Chain tensioner		1		11317617472	Shop at ECS Tuning
10	Guide rail		1		11317617489	Shop at ECS Tuning
11	Chain tensioner		1		11317617475	Shop at ECS Tuning
12	Gasket ring	A22X27	1		11317631972	Shop at ECS Tuning
	Mounting bolts included in the accessories
13	Slide rail		1		11317617474	Shop at ECS Tuning
14	Bearing journal, cylinder head		2		11317797900	Shop at ECS Tuning
15	Bearing journal, crankcase		1		13527797908	Shop at ECS Tuning
16	Countersunk screw	M6X16	2		07119907139	Shop at ECS Tuning
