Engine Block Mounting Parts for BMW 7 Series G12 730Ld (2019)

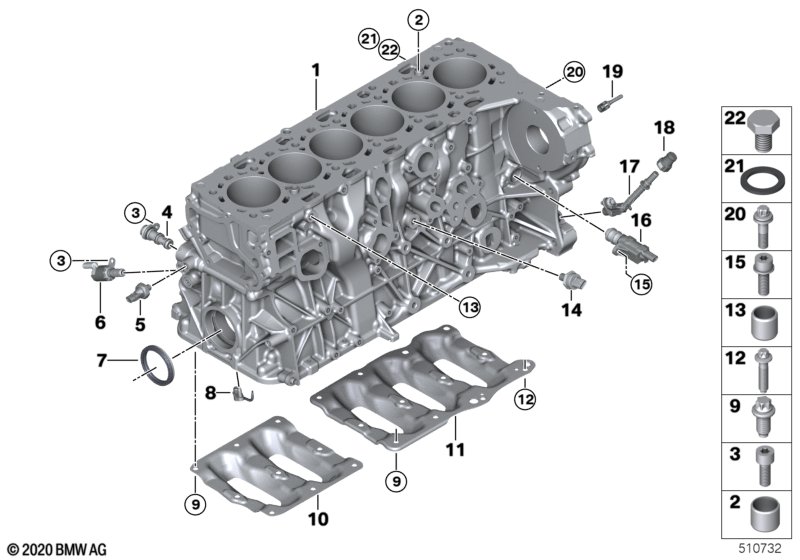

This Engine Block Mounting Parts technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 730Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Not offered by BMW | 1 | 84210300311 | ENDED | Shop at ECS Tuning | |||||
| 02 | Dowel | D=14,5MM | 4 | 11112245180 | $1.65 | Shop at ECS Tuning | ||||
| 03 | ISA screw | M6X16-8.8-ZNS3 | 2 | 07129904588 | $0.96 | Shop at ECS Tuning | ||||
| 04 | Shift valve for piston cooling | 1 | 11428577190 | Shop at ECS Tuning | ||||||
| 05 | Oil pressure switch | 1 | 12618577967 | Shop at ECS Tuning | ||||||
| 06 | Control valve for piston cooling | 1 | 11428577189 | Shop at ECS Tuning | ||||||
| 07 | Shaft seal | 55X68X8 | 1 | 11117802665 | Shop at ECS Tuning | |||||
| 08 | Oil Spraying Nozzle | 6 | 11428576536 | Shop at ECS Tuning | ||||||
| 09 | ASA-Bolt | M8X14 10.9 | 17 | 11118572125 | Shop at ECS Tuning | |||||
| 10 | Reinforcement plate | ZYLINDER 1-2 | 1 | 11118599662 | Shop at ECS Tuning | |||||
| 11 | Reinforcement plate | ZYLINDER 4-6 | 1 | 11118599661 | Shop at ECS Tuning | |||||
| 12 | ASA-Bolt | M8X35 | 4 | 11418612615 | Shop at ECS Tuning | |||||
| 13 | Dowel | D=10,5MM | 4 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 14 | Oil pressure sensor | M10 | 1 | 04/2017 | 12618647488 | Shop at ECS Tuning | ||||
| 15 | Fillister-head screw | M6X18-10.9-ZNS3 | 1 | 07119906651 | Shop at ECS Tuning | |||||
| 16 | Solenoid valve (SOLV) | 1 | 11417639993 | Shop at ECS Tuning | ||||||
| 17 | non-return valve | 1 | 11667620923 | Shop at ECS Tuning | ||||||
| 18 | Cap | 1 | 11668647314 | Shop at ECS Tuning | ||||||
| 19 | Oil Spraying Nozzle | 1 | 13527797909 | Shop at ECS Tuning | ||||||
| 20 | ASA-Bolt | M6X22-Z1 | 1 | 13527800396 | Shop at ECS Tuning | |||||
| 21 | Gasket ring | A14X20-AL | 1 | 07119963225 | $0.11 | Shop at ECS Tuning | ||||
| 22 | Screw plug | M14X1,5-ZNNIV | 1 | 07119904539 | $2.56 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
