Cylinder Head/Mounting parts for BMW 7 Series G12 LCI 730LdX (2022)

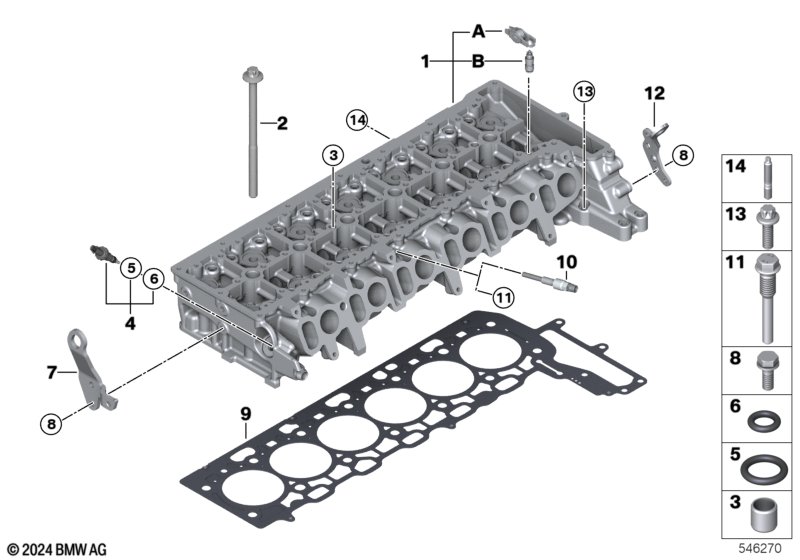

This Cylinder Head/Mounting parts technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 LCI 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder Head | 1 | 07/2017 | 11127828213 | Shop at ECS Tuning | |||||
| 01 | Cylinder head with valve gear | 1 | 07/2017 | 11121031793 | Shop at ECS Tuning | |||||
| 02 | Set Bolt Cylinder Head | M12X1,5X200 | 1 | 11128513130 | Shop at ECS Tuning | |||||
| 03 | Dowel | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 04 | Temperature sensor, coolant | 1 | 13627797957 | Shop at ECS Tuning | ||||||
| 05 | O-ring | 9,3X2,2 | 1 | 13627807006 | Shop at ECS Tuning | |||||
| 06 | O-ring | 5,6X2 | 2 | 13627807005 | Shop at ECS Tuning | |||||
| 07 | Loop | 1 | 11128575651 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt with washer | M8X22 | 4 | 07119905739 | $0.62 | Shop at ECS Tuning | ||||
| 09 | Cylinder head gasket | 1-LOCH | 1 | 11128589105 | Shop at ECS Tuning | |||||
| 09 | Cylinder head gasket | 2-LOCH | 1 | 11128589106 | Shop at ECS Tuning | |||||
| 09 | Cylinder head gasket | 3-LOCH | 1 | 11128589107 | Shop at ECS Tuning | |||||
| 10 | Not offered by BMW | 1 | 84210300311 | ENDED | Shop at ECS Tuning | |||||
| 11 | Not offered by BMW | 1 | 84210300311 | ENDED | Shop at ECS Tuning | |||||
| 12 | Loop | 1 | 11127812885 | Shop at ECS Tuning | ||||||
| 12 | Mounting bracket | 1 | 11128472125 | NoS | Shop at ECS Tuning | |||||
| 13 | ASA-Bolt | M8X40 | 5 | 07119907475 | Shop at ECS Tuning | |||||
| 14 | ASA-stud bolt | M7X47-10.9-PHR | 12 | 11128597830 | Shop at ECS Tuning |
