Exhaust turbo.and Value Line install.kit for BMW 5 Series F10 525d (2011)

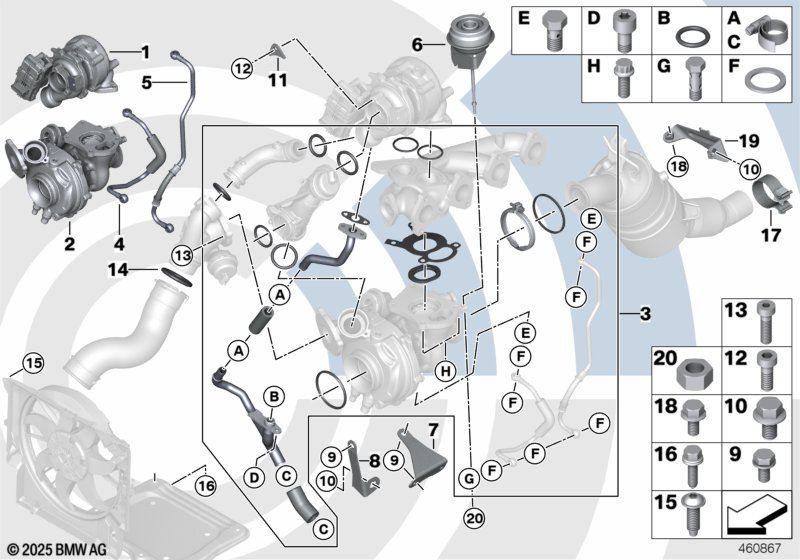

This Exhaust turbo.and Value Line install.kit technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Please always observe repair instructions 11 65 020! |
||||||||||
| 01 | Exhaust turbocharger | 1 | 11657823256 | +core | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Installation kit exhaust turbocharger | VALUE PARTS | 1 | 11652411468 | Shop at ECS Tuning | |||||
| 02 | Exhaust turbocharger | 1 | 11657823258 | +core | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Installation kit exhaust turbocharger | VALUE PARTS | 1 | 11652411468 | Shop at ECS Tuning | |||||
| VALUE REPAIR PARTS! Everything in one click! Saves time, logistical costs and handling costs. Installation kit includes all small parts Improves the repair quality. |
||||||||||
| 03 | Installation kit exhaust turbocharger | VALUE PARTS | 1 | 11652411468 | Shop at ECS Tuning | |||||
| Please always observe repair instructions 11 65 020! |
||||||||||
| 04 | Oil pipe | 1 | 11657823283 | Shop at ECS Tuning | ||||||
| 05 | Oil pipe | 1 | 11657823282 | Shop at ECS Tuning | ||||||
| 06 | Vacumm box | 1 | 11658508517 | +core | Shop at ECS Tuning | |||||
| 07 | Support | 1 | 11657810618 | Shop at ECS Tuning | ||||||
| 08 | Support | 1 | 11657800606 | Shop at ECS Tuning | ||||||
| 09 | Hex bolt with washer | M8X16 | 4 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M12X20 | 1 | 07119904488 | $3.02 | Shop at ECS Tuning | ||||
| 11 | Mounting panel | 3 | 11657823036 | Shop at ECS Tuning | ||||||
| 12 | ISA screw | M6X16-8.8-ZNNIV | 3 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 13 | Fillister-head screw | M6X20-ZNNIV SI | 3 | 07119903040 | Shop at ECS Tuning | |||||
| 14 | Preformed seal | 1 | 11618506782 | Shop at ECS Tuning | ||||||
| 15 | Screw self-tapping | D5X20 | 1 | 17427585290 | $1.12 | Shop at ECS Tuning | ||||
| 17 | Muffler clamp | D=70,6 X 31,8MM | 1 | 18307791587 | $15.83 | Shop at ECS Tuning | ||||
| 18 | Hex bolt | M12X20 | 1 | 07119904488 | $3.02 | Shop at ECS Tuning | ||||
| 19 | Rod | 1 | 18207823511 | Shop at ECS Tuning | ||||||
| 20 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 21 | Hex bolt with washer | M8X20-U1-8.8 | 1 | 07119904992 | $0.55 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
