Flywheel for BMW 5 Series G30 M550iX (2019)

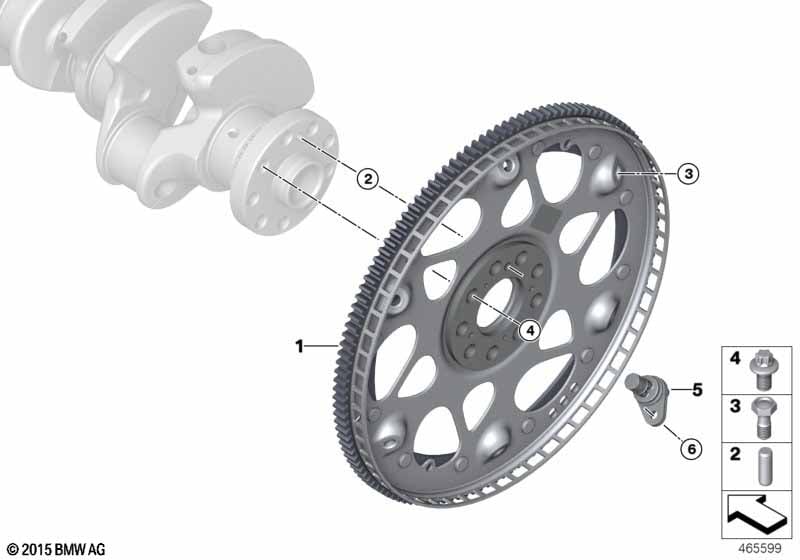

This Flywheel technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 M550iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Flywheel automatic | 1 | 11227567151 | $497.59 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex bolt | M12X1,5X28 | 9 | 11227805885 | $2.30 | Shop at ECS Tuning | ||||
| 02 | Pin | 5X14 | 1 | 11217500307 | $2.47 | Shop at ECS Tuning | ||||
| 03 | ASA-Bolt | M10X1X17,5 ZNS3 | 6 | 24407629873 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M12X1,5X28 | 9 | 11227805885 | $2.30 | Shop at ECS Tuning | ||||
| 05 | Crankshaft sensor | 1 | 13628623437 | Shop at ECS Tuning | ||||||
| 06 | Star-socket screw | M6X16-ZNNIV SI | 1 | 07119907463 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G30 M550iX Flywheel?
- This technical diagram illustrates the Flywheel within the Engine group for the 5 Series G30 M550iX produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Flywheel automatic (Part #11227567151).
- Which models use the hardware listed in this Flywheel?
- The hardware and components featured in the Flywheel are specific to the 5 Series G30 M550iX produced during 2019. These technical specifications ensure that parts like the Flywheel automatic (11227567151) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Flywheel assembly?
- Each item in the Flywheel corresponds to the numbered list below the illustration. For the 5 Series G30 M550iX, you can identify the Flywheel automatic by locating its position on the schematic, which then links to the official BMW part number 11227567151 for the Engine section.
