Engine Block Mounting Parts for BMW 7 Series G12 M760LiX (2019)

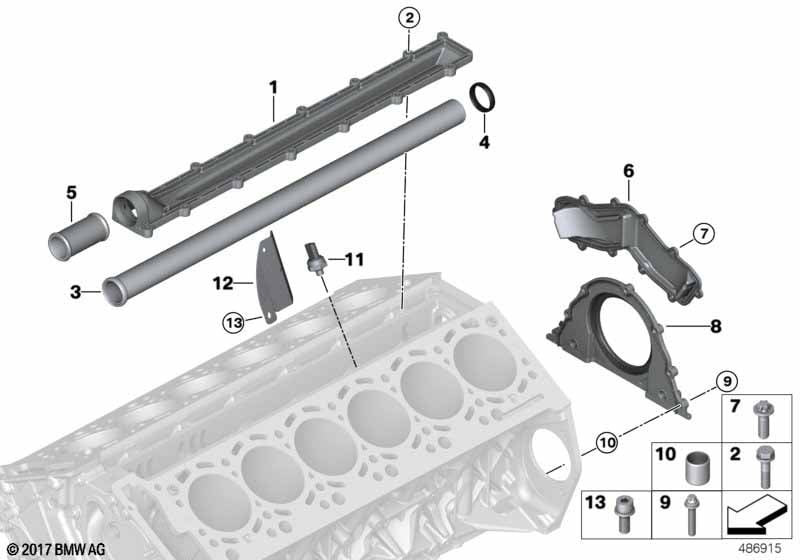

This Engine Block Mounting Parts technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 M760LiX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | cap with seal | 1 | 11147506384 | $76.03 | Shop at ECS Tuning | |||||
| 02 | Hex bolt with washer | M6X25-ZNNIV SI | 14 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 03 | Coolant pipe, supply line | 1 | 11147500355 | $66.83 | Shop at ECS Tuning | |||||
| 04 | O-ring | 34,2X4,0MM | 1 | 11531710048 | $2.69 | Shop at ECS Tuning | ||||
| 05 | Return pipe | 1 | 11511439976 | $16.15 | Shop at ECS Tuning | |||||
| 06 | End cover, rear | 1 | 11148483793 | Shop at ECS Tuning | ||||||
| 07 | ASA-Bolt | M6X18-U1 | 10 | 11147571166 | $1.65 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X18-U1 | 10 | 07119905399 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Cap with shaft seal | 1 | 11148483798 | Shop at ECS Tuning | ||||||
| 09 | Star-socket screw | M6X30 | 7 | 11519908732 | Shop at ECS Tuning | |||||
| 10 | Dowel | D=8,3MM | 2 | 11121715657 | $1.25 | Shop at ECS Tuning | ||||
| 11 | Oil pressure sensor | M10 | 1 | 12618647488 | Shop at ECS Tuning | |||||
| 12 | Heat shield for oil pressure sensor | 1 | 12528653751 | Shop at ECS Tuning | ||||||
| 13 | ISA screw | M6X16MM | 2 | 07129903749 | $2.80 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G12 M760LiX Engine Block Mounting Parts?
- This technical diagram illustrates the Engine Block Mounting Parts within the Engine group for the 7 Series G12 M760LiX produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the cap with seal (Part #11147506384).
- Which models use the hardware listed in this Engine Block Mounting Parts?
- The hardware and components featured in the Engine Block Mounting Parts are specific to the 7 Series G12 M760LiX produced during 2019. These technical specifications ensure that parts like the cap with seal (11147506384) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine Block Mounting Parts assembly?
- Each item in the Engine Block Mounting Parts corresponds to the numbered list below the illustration. For the 7 Series G12 M760LiX, you can identify the cap with seal by locating its position on the schematic, which then links to the official BMW part number 11147506384 for the Engine section.
