Cylinder head cover/Mounting parts for BMW 2 Series F44 Gran Coupé 220i (2024)

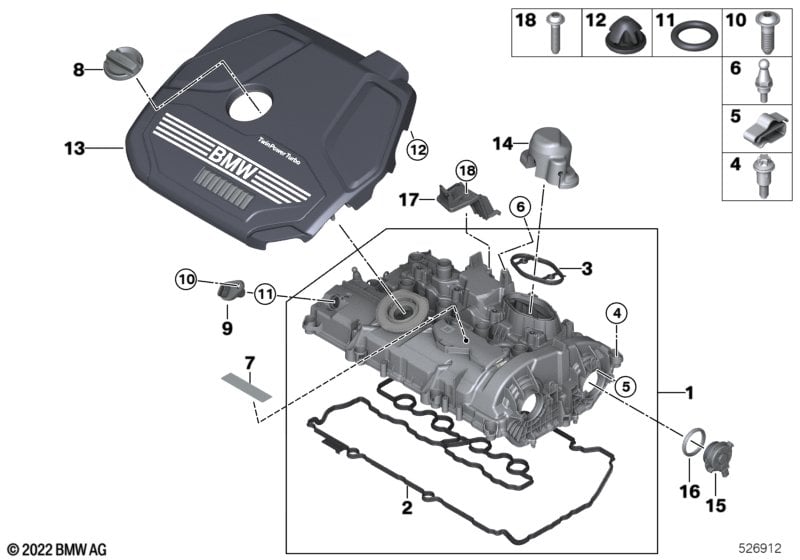

This Cylinder head cover/Mounting parts technical drawing provides a detailed breakdown of the assembly for the 2 Series F44 Gran Coupé 220i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Note: Three-part sealing concept from MY 2020! |
||||||||||
| 01 | Cylinder head cover | 1 | 11129452895 | Shop at ECS Tuning | ||||||
| only applies to | ||||||||||
| -- | Cylinder head with valve gear | X | 11121019165 | Shop at ECS Tuning | ||||||
| -- | Cylinder head with valve gear | X | 11121019167 | Shop at ECS Tuning | ||||||
| -- | Gasket set, cylinder head cover | X | 11129797205 | Shop at ECS Tuning | ||||||
| 02 | Gasket set, cylinder head cover | 1 | 11129797205 | Shop at ECS Tuning | ||||||
| only applies to | ||||||||||
| -- | Cylinder head with valve gear | X | 11121019167 | Shop at ECS Tuning | ||||||
| -- | Cylinder head cover | X | 11129452895 | Shop at ECS Tuning | ||||||
| -- | Cyl.head cover w/o pressure ctrl.valve | X | 11129452896 | Shop at ECS Tuning | ||||||
| 03 | Profile-gasket | 1 | 11127617411 | Shop at ECS Tuning | ||||||
| only applies to | ||||||||||
| -- | Cylinder head with valve gear | X | 11121019167 | Shop at ECS Tuning | ||||||
| -- | Cylinder head cover | RDE2 | X | 11121020801 | Shop at ECS Tuning | |||||
| -- | Cylinder head cover | X | 11129452895 | Shop at ECS Tuning | ||||||
| -- | Cyl.head cover w/o pressure ctrl.valve | X | 11129452896 | Shop at ECS Tuning | ||||||
| 04 | Collar screw | M6X30 | 9 | 01/2020 | 11129454322 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| 04 | Collar screw | M6X65 | 1 | 01/2020 | 11129453984 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Cylinder head with valve gear | X | 01/2020 | 11121019167 | Shop at ECS Tuning | |||||
| -- | Cylinder head cover | X | 01/2020 | 11129452895 | Shop at ECS Tuning | |||||
| -- | Cyl.head cover w/o pressure ctrl.valve | X | 01/2020 | 11129452896 | Shop at ECS Tuning | |||||
| 05 | Fixing clamp | 2 | 11127648915 | Shop at ECS Tuning | ||||||
| 05 | Fixing clamp | 2 | 11128642177 | Shop at ECS Tuning | ||||||
| 06 | Retaining pin | 1 | 11127643221 | Shop at ECS Tuning | ||||||
| 07 | Sign ignition coil/ fuel | 1 | 71228656625 | ENDED | Shop at ECS Tuning | |||||
| 08 | Cap for oil filler | 1 | 11128654637 | Shop at ECS Tuning | ||||||
| 08 | Cap for oil filler | 1 | 11121028899 | Shop at ECS Tuning | ||||||
| 09 | Camshaft position sensor | 2 | 13627633958 | Shop at ECS Tuning | ||||||
| 10 | Torx-bolt for plastic material | TS5X20 | 2 | 07119907480 | Shop at ECS Tuning | |||||
| 11 | O-ring | 18,2X2,5 | 2 | 13628658854 | Shop at ECS Tuning | |||||
| 12 | Damper rubber | 1 | 13537639983 | Shop at ECS Tuning | ||||||
| 13 | Engine cover | 1 | 11148656447 | Shop at ECS Tuning | ||||||
| 14 | Cover for high-pressure pump | 1 | 11148483903 | Shop at ECS Tuning | ||||||
| 15 | Actuator, VANOS | 2 | 11367614288 | Shop at ECS Tuning | ||||||
| 16 | Seal | 2 | 11365A65AB5 | Shop at ECS Tuning | ||||||
| 17 | Holder | 1 | 07/2019 | 11789468748 | Shop at ECS Tuning | |||||
| 18 | Fillister head screw | 1 | 07149272649 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
