Flywheel for BMW 8 Series F92 M8 Coupé M8 (2025)

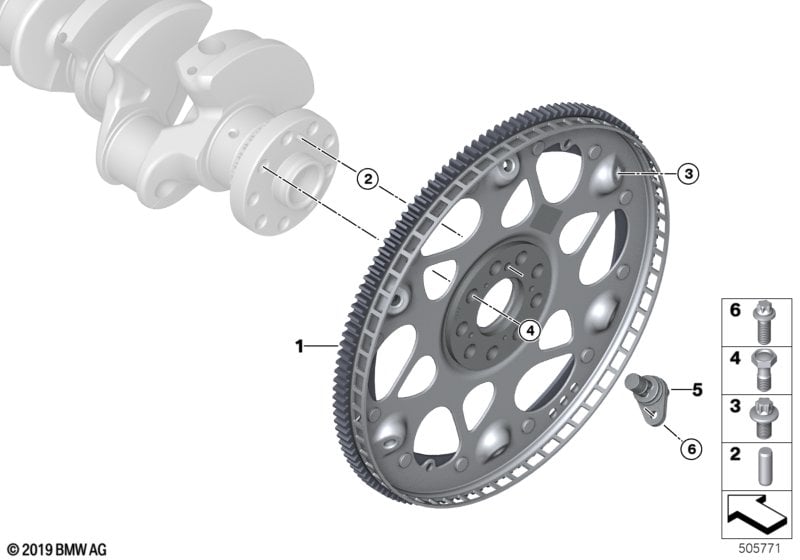

This Flywheel technical drawing provides a detailed breakdown of the assembly for the 8 Series F92 M8 Coupé M8. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Flywheel automatic | 1 | 11227567151 | $497.59 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex bolt | M12X1,5X28 | 9 | 11227805885 | $2.30 | Shop at ECS Tuning | ||||
| 02 | Pin | 5X14 | 1 | 11217500307 | $2.47 | Shop at ECS Tuning | ||||
| 03 | ASA-Bolt | M10X1X17,5 ZNS3 | 6 | 24407629873 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M12X1,5X28 | 9 | 11227805885 | $2.30 | Shop at ECS Tuning | ||||
| 05 | Crankshaft sensor | 1 | 13628623437 | Shop at ECS Tuning | ||||||
| 06 | Star-socket screw | M6X16-ZNNIV SI | 1 | 07119907463 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series F92 M8 Coupé M8 Flywheel?
- This technical diagram illustrates the Flywheel within the Engine group for the 8 Series F92 M8 Coupé M8 produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Flywheel automatic (Part #11227567151).
- Which models use the hardware listed in this Flywheel?
- The hardware and components featured in the Flywheel are specific to the 8 Series F92 M8 Coupé M8 produced during 2025. These technical specifications ensure that parts like the Flywheel automatic (11227567151) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Flywheel assembly?
- Each item in the Flywheel corresponds to the numbered list below the illustration. For the 8 Series F92 M8 Coupé M8, you can identify the Flywheel automatic by locating its position on the schematic, which then links to the official BMW part number 11227567151 for the Engine section.
