Repair kit, exposed timing chain, top for BMW 5 Series F10 528i (2013)

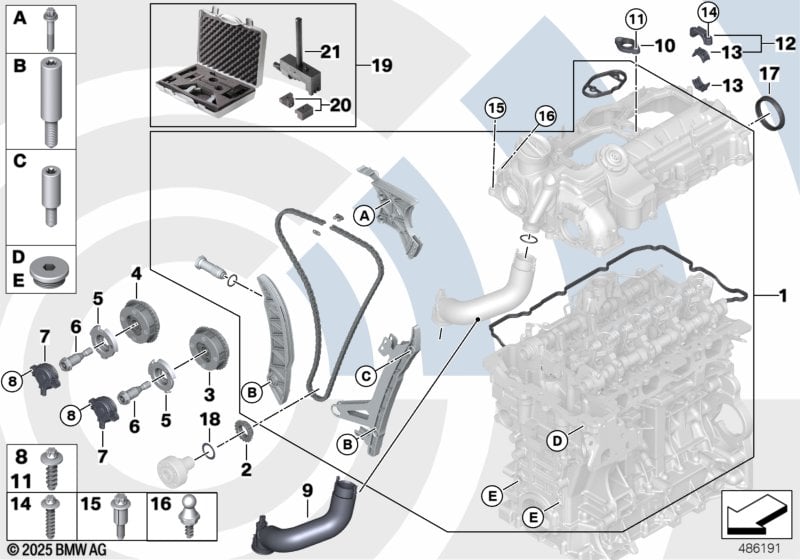

This Repair kit, exposed timing chain, top technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version China |
L8AAA=No |
||||||||
| VALUE REPAIR PARTS! Everything in one click! Saves time, logistical costs and handling costs. Significantly reduces the work time! Improves the repair quality. |
||||||||||
| 01 | Repair kit, exposed timing chain, top | VALUE PARTS | 1 | 11312457622 | Shop at ECS Tuning | |||||
| Observe repair instructions in REP-11 31 544! Observe repair instruction 11 31 063! Engine oil change is required! only in conjunction with positions 20 and 21 |
||||||||||
| Important! Note Repair Manual |
||||||||||
| 02 | Sprocket | 1 | 11317603944 | Shop at ECS Tuning | ||||||
| 03 | Adjustment unit, inlet camshaft | 1 | 11367583818 | Shop at ECS Tuning | ||||||
| 04 | Adjustment unit, outlet camshaft | 1 | 11367583819 | Shop at ECS Tuning | ||||||
| 05 | Impulse sending wheel | 2 | 11367598215 | Shop at ECS Tuning | ||||||
| 06 | VANOS central valve | 2 | 11367583820 | +core | Shop at ECS Tuning | |||||
| 07 | Actuator | 2 | 11367593719 | +core | Shop at ECS Tuning | |||||
| 08 | ASA screw, self-threading | M6X18 | 4 | 11367609963 | Shop at ECS Tuning | |||||
| 09 | Vent hose | 1 | 11127598091 | Shop at ECS Tuning | ||||||
| For vehicles with Blow-by heater or Cold-climate version |
S4NEA=Yes S842A=Yes |
|||||||||
| 09 | Vent hose | 1 | 11127588417 | Shop at ECS Tuning | ||||||
| 10 | Gasket-flange | 1 | 11377502022 | $8.43 | Shop at ECS Tuning | |||||
| 11 | ASA screw, self-threading | M6X18 | 2 | 11367609963 | Shop at ECS Tuning | |||||
| 12 | Fixing bow | 2 | 11127605327 | Shop at ECS Tuning | ||||||
| 13 | Decoupling element | 4 | 11127593333 | +core | Shop at ECS Tuning | |||||
| 14 | ASA-Bolt | K7X30 | 4 | 11127605328 | Shop at ECS Tuning | |||||
| 15 | ASA-Bolt | 20 | 11127802605 | Shop at ECS Tuning | ||||||
| 16 | Ball pin | 1 | 11127593207 | Shop at ECS Tuning | ||||||
| 17 | Shaft seal | 1 | 11127507217 | Shop at ECS Tuning | ||||||
| Important! Note Repair Manual |
||||||||||
| 18 | Washer | 26.4 X 38.3 | 1 | 11237600595 | Shop at ECS Tuning | |||||
| 19 | Riveting tool set | 1 | 83302354985 | ENDED | Shop at ECS Tuning | |||||
| 20 | Female die | 1 | 83302354976 | Shop at ECS Tuning | ||||||
| 20 | Nietwerkzeug | 1 | 83302354981 | ENDED | Shop at ECS Tuning | |||||
| 20 | Spindle | 1 | 83302354984 | Shop at ECS Tuning | ||||||
| 21 | Basic body | 1 | 83302354962 | Shop at ECS Tuning | ||||||
| 21 | Basic body | 1 | 83302354983 | Shop at ECS Tuning | ||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
