Cylinder Head for BMW 2 Series F44 Gran Coupé 220i (2024)

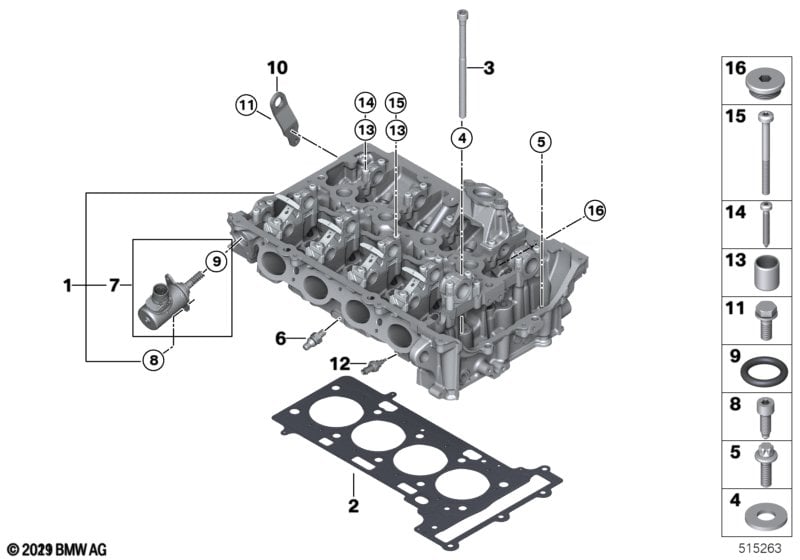

This Cylinder Head technical drawing provides a detailed breakdown of the assembly for the 2 Series F44 Gran Coupé 220i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Hot-climate version |
S823A=No |
|||||||||
| 01 | Cylinder head with valve gear | 1 | 01/2020 | 11121019164 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Dowel pin | 4X16MM | 2 | 01/2020 | 07119942082 | Shop at ECS Tuning | ||||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 01 | Cylinder head with valve gear | 1 | 01/2020 | 11121019165 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Dowel pin | 4X16MM | 2 | 01/2020 | 07119942082 | Shop at ECS Tuning | ||||
| 02 | Cylinder head gasket | 0,80MM | 1 | 11127934596 | Shop at ECS Tuning | |||||
| 02 | Cylinder head gasket | 1,10MM (+0,3) | 1 | 11127934597 | Shop at ECS Tuning | |||||
| 03 | Cylinder head bolt | M11X188 | 10 | 11128644674 | Shop at ECS Tuning | |||||
| 04 | Washer | 10 | 11127583138 | $6.05 | Shop at ECS Tuning | |||||
| 05 | ASA-Bolt | M8X40 | 5 | 07119907475 | Shop at ECS Tuning | |||||
| 06 | Air-discharge fitting with O-ring | 1 | 11128626622 | Shop at ECS Tuning | ||||||
| 07 | Actuator | 1 | 11378652738 | Shop at ECS Tuning | ||||||
| 08 | ISA screw | M6X16-8.8-ZNNIV | 2 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 09 | Shaft seal | 1 | 11378662525 | Shop at ECS Tuning | ||||||
| 10 | Loop | 1 | 11127638711 | Shop at ECS Tuning | ||||||
| 11 | Hex bolt with washer | M8X22 | 2 | 07119905739 | $0.62 | Shop at ECS Tuning | ||||
| 12 | Temperature sensor coolant / oil | 1 | 13627580635 | Shop at ECS Tuning | ||||||
| 13 | Dowel | D=7,5MM | 17 | 11127606504 | Shop at ECS Tuning | |||||
| Attention! Observe repair manual.Changed tightening process. |
||||||||||
| 14 | Countersunk screw | M6X35-8.8 | 22 | 07119907886 | Shop at ECS Tuning | |||||
| 14 | Countersunk screw | M6X35-10.9 | 18 | 07119909683 | Shop at ECS Tuning | |||||
| 15 | Countersunk screw | M6X65-8.8 | 5 | 07119907887 | Shop at ECS Tuning | |||||
| 15 | Countersunk screw | M6X65-10.9 | 9 | 07149844207 | Shop at ECS Tuning | |||||
| 16 | Screw plug | M28X1.5 | 3 | 11128697732 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Thread lock, medium-strength | 10ML | 4 | 83192210339 | Shop at ECS Tuning | |||||
