Exhaust turbocharger with lubrication for BMW 1 Series F40 120i (2024)

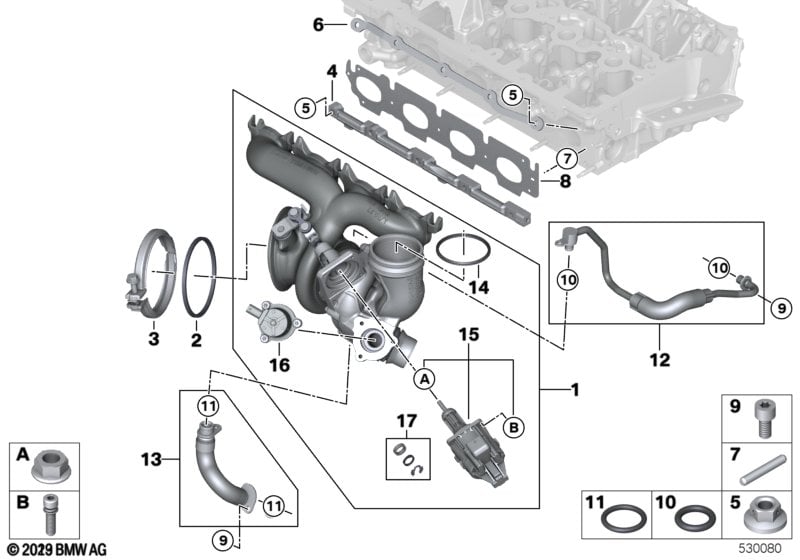

This Exhaust turbocharger with lubrication technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 120i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Do not use turbocharger additive SN 2457276 for Korea vehicles! |
||||||||||
| 01 | RP exhaust turbo.w/exhaust manifold | 1 | 11658629966 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Turbolader additive diesel/gasoline | 17ML | 1 | 83195B305D6 | Shop at ECS Tuning | |||||
| -- | Repair kit, E-controller | 1 | 11655A7A286 | Shop at ECS Tuning | ||||||
| 02 | Gasket ring | 1 | 18307581970 | Shop at ECS Tuning | ||||||
| 03 | Screw clamp | 1 | 18307606136 | Shop at ECS Tuning | ||||||
| 04 | Terminal strip | 1 | 11628678770 | Shop at ECS Tuning | ||||||
| 05 | Flange nut | M7 | 10 | 11628597827 | Shop at ECS Tuning | |||||
| 06 | Sliding bar | 1 | 11628642775 | Shop at ECS Tuning | ||||||
| 07 | Dowel pin | 4X16MM | 2 | 07119942082 | Shop at ECS Tuning | |||||
| 08 | Gasket for exhaust manifold | 1 | 11628642774 | Shop at ECS Tuning | ||||||
| 09 | ISA screw | M6X12-8.8-ZNNIV | 4 | 07129905867 | Shop at ECS Tuning | |||||
| 10 | O-ring | 9,7X1,5MM | 2 | 11537610049 | Shop at ECS Tuning | |||||
| 11 | O-ring | 16X2MM | 2 | 11428604872 | Shop at ECS Tuning | |||||
| 12 | Oil supply line | 1 | 11428629969 | Shop at ECS Tuning | ||||||
| 13 | Oil return line | 1 | 11428629970 | Shop at ECS Tuning | ||||||
| 14 | Preformed seal | 1 | 11617796622 | $6.65 | Shop at ECS Tuning | |||||
| 15 | Set Wastegate valve actuator | 1 | 11658691853 | Shop at ECS Tuning | ||||||
| 16 | Blow-off valve | 1 | 11658691854 | Shop at ECS Tuning | ||||||
| Observe service solution 20000779619991. | ||||||||||
| 17 | Repair kit, E-controller | 1 | 11655A7A286 | Shop at ECS Tuning | ||||||
