Belt Drive for BMW MINI F56 One (2021)

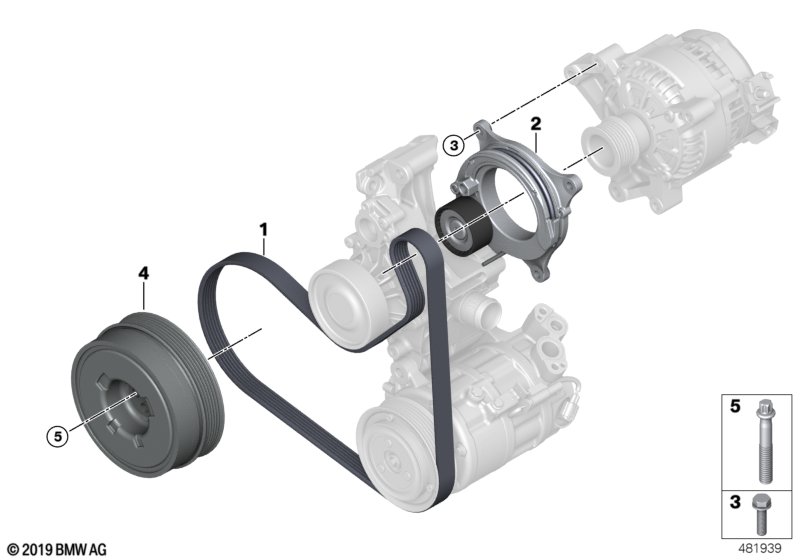

This Belt Drive technical drawing provides a detailed breakdown of the assembly for the MINI F56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Air conditioning or Automatic air conditioning |
S530A=Yes S534A=Yes |
||||||||
| 01 | Ribbed v-belt | 6PK 1175 | 1 | 07/2024 | 11287952902 | Shop at ECS Tuning | ||||
| 01 | Ribbed v-belt | 6PK 1175 | 1 | 11285B32CE4 | Shop at ECS Tuning | |||||
| 02 | Mechanical belt tensioner | 1 | 11288580360 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt | 3 | 07119908571 | Shop at ECS Tuning | ||||||
| Note Repair Manual Observe PuMA measure 64774644 |
||||||||||
| 04 | Torsional vibration absorber | 1 | 11/2023 | 11238687695 | ENDED | Shop at ECS Tuning | ||||
| 04 | Vibration damper | 1 | 11235A79500 | Shop at ECS Tuning | ||||||
| 05 | ASA-Bolt | M10X65 | 4 | 11238585220 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
