Crankcase-Ventilation for BMW MINI Cabrio F57 JCW (2021)

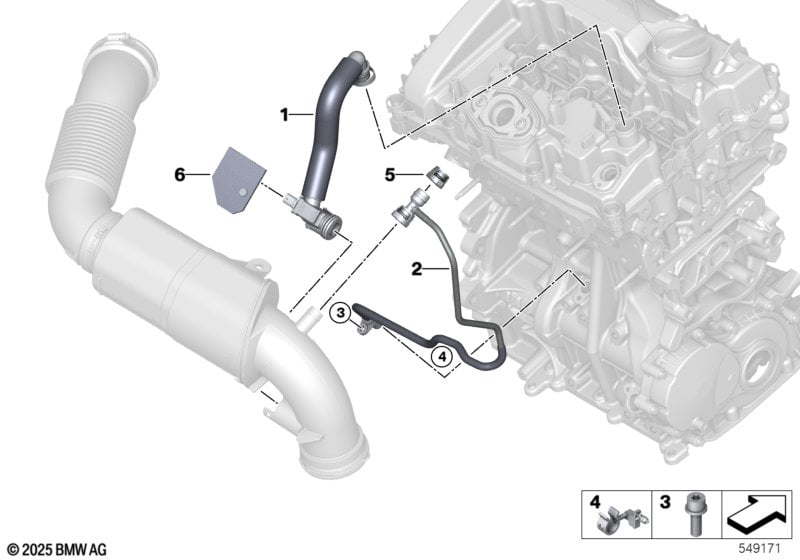

This Crankcase-Ventilation technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Blow-by heater |
S4NEA=Yes |
|||||||||
| 01 | Engine ventilation line, heated | 1 | 11157613889 | Shop at ECS Tuning | ||||||
| For vehicles with Blow-by heater |
S4NEA=No |
|||||||||
| 01 | Engine ventilation line | 1 | 11157621015 | Shop at ECS Tuning | ||||||
| 02 | Scavenge air line | 1 | 11158637971 | Shop at ECS Tuning | ||||||
| 03 | Fillister head screw | 1 | 07142994134 | Shop at ECS Tuning | ||||||
| 04 | Part not available separately | 1 | 00000000000 | Shop at ECS Tuning | ||||||
| 05 | Lock | 1 | 13907515387 | $3.85 | +core | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Cabrio F57 JCW Crankcase-Ventilation?
- This technical diagram illustrates the Crankcase-Ventilation within the Engine group for the MINI Cabrio F57 JCW produced during 2021. It provides a detailed exploded view of the components, identifying key parts such as the Engine ventilation line, heated (Part #11157613889).
- Which models use the hardware listed in this Crankcase-Ventilation?
- The hardware and components featured in the Crankcase-Ventilation are specific to the MINI Cabrio F57 JCW produced during 2021. These technical specifications ensure that parts like the Engine ventilation line, heated (11157613889) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Crankcase-Ventilation assembly?
- Each item in the Crankcase-Ventilation corresponds to the numbered list below the illustration. For the MINI Cabrio F57 JCW, you can identify the Engine ventilation line, heated by locating its position on the schematic, which then links to the official BMW part number 11157613889 for the Engine section.
