Valve timing gear, camshaft, inlet for BMW MINI Cabrio F57 JCW (2020)

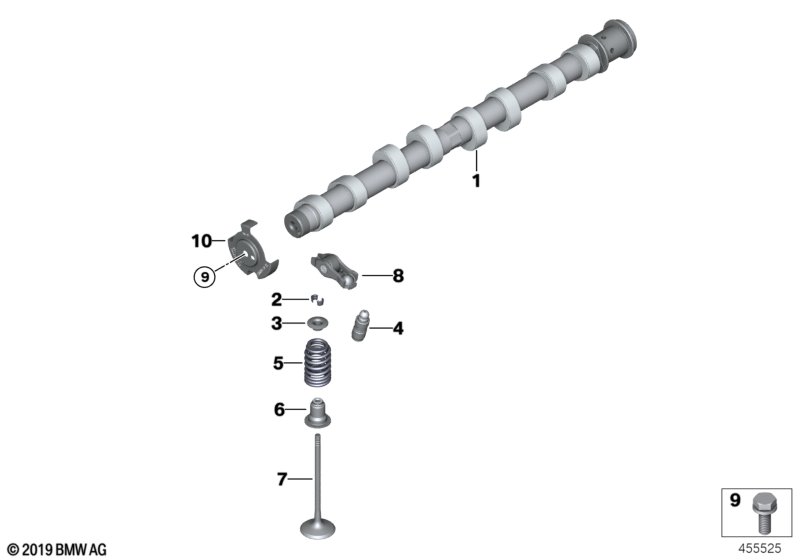

This Valve timing gear, camshaft, inlet technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Inlet camshaft | 1 | 11318664036 | Shop at ECS Tuning | ||||||
| 02 | Valve collet | D=5 | 16 | 11341438142 | $1.08 | Shop at ECS Tuning | ||||
| 03 | Upper spring plate | 16 | 11347539917 | $3.77 | Shop at ECS Tuning | |||||
| 04 | Alignment element | 16 | 11338679835 | Shop at ECS Tuning | ||||||
| 05 | Valve spring | 8 | 11347618835 | Shop at ECS Tuning | ||||||
| 06 | Repair kit valve seal ring | 1 | 11340038719 | Shop at ECS Tuning | ||||||
| 07 | Intake valve | 30,1/4,97MM | 8 | 11347633699 | Shop at ECS Tuning | |||||
| 08 | Roller drag lever | "1" | 8 | 11337640533 | Shop at ECS Tuning | |||||
| 08 | Roller drag lever | "2" | 8 | 11337640534 | Shop at ECS Tuning | |||||
| 08 | Roller drag lever | "3" | 8 | 11337640535 | Shop at ECS Tuning | |||||
| 08 | Roller drag lever | "4" | 8 | 11337640536 | Shop at ECS Tuning | |||||
| 08 | Roller drag lever | "5" | 8 | 11337640537 | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Impulse sending wheel | 1 | 11367639001 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Cabrio F57 JCW Valve timing gear, camshaft, inlet?
- This technical diagram illustrates the Valve timing gear, camshaft, inlet within the Engine group for the MINI Cabrio F57 JCW produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Inlet camshaft (Part #11318664036).
- Which models use the hardware listed in this Valve timing gear, camshaft, inlet?
- The hardware and components featured in the Valve timing gear, camshaft, inlet are specific to the MINI Cabrio F57 JCW produced during 2020. These technical specifications ensure that parts like the Inlet camshaft (11318664036) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Valve timing gear, camshaft, inlet assembly?
- Each item in the Valve timing gear, camshaft, inlet corresponds to the numbered list below the illustration. For the MINI Cabrio F57 JCW, you can identify the Inlet camshaft by locating its position on the schematic, which then links to the official BMW part number 11318664036 for the Engine section.
