Cylinder head cover/covers for BMW 5 Series G31 Touring 530i (2018)

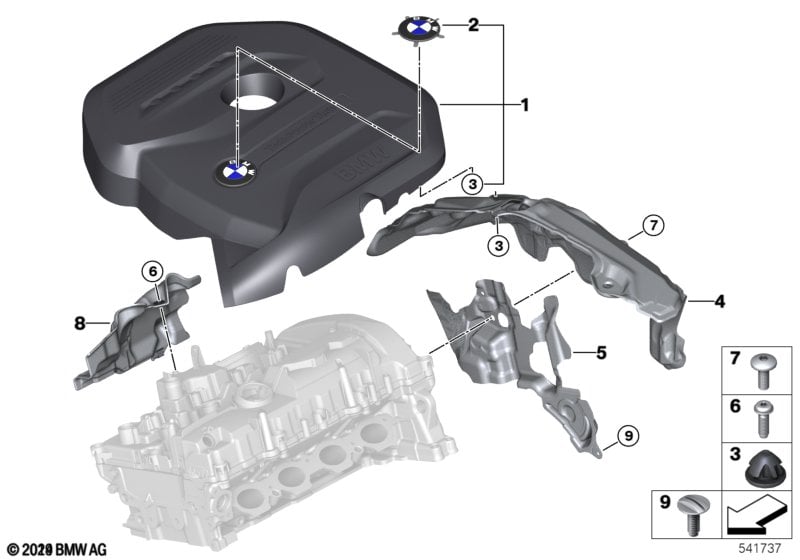

This Cylinder head cover/covers technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine cover | 1 | 11128657035 | Shop at ECS Tuning | ||||||
| 02 | BMW emblem | 1 | 11147788967 | $11.26 | Shop at ECS Tuning | |||||
| 03 | Bump stop | 2 | 11127614138 | Shop at ECS Tuning | ||||||
| 04 | Acoustic cover rear | 1 | 11148607143 | Shop at ECS Tuning | ||||||
| 05 | Acoustic cover rear | 1 | 11148663501 | Shop at ECS Tuning | ||||||
| 06 | Screw | 6X20 | 1 | 07129907489 | Shop at ECS Tuning | |||||
| 07 | Fillister head screw | 1 | 07142994134 | Shop at ECS Tuning | ||||||
| 08 | Heat resistant plate | 1 | 11148696047 | Shop at ECS Tuning | ||||||
| 09 | Plug-in retainer | 1 | 07147310674 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G31 Touring 530i Cylinder head cover/covers?
- This technical diagram illustrates the Cylinder head cover/covers within the Engine group for the 5 Series G31 Touring 530i produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Engine cover (Part #11128657035).
- Which models use the hardware listed in this Cylinder head cover/covers?
- The hardware and components featured in the Cylinder head cover/covers are specific to the 5 Series G31 Touring 530i produced during 2018. These technical specifications ensure that parts like the Engine cover (11128657035) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder head cover/covers assembly?
- Each item in the Cylinder head cover/covers corresponds to the numbered list below the illustration. For the 5 Series G31 Touring 530i, you can identify the Engine cover by locating its position on the schematic, which then links to the official BMW part number 11128657035 for the Engine section.
