Vacuum control for BMW 2 Series F46 Gran Tourer LCI 218d (2022)

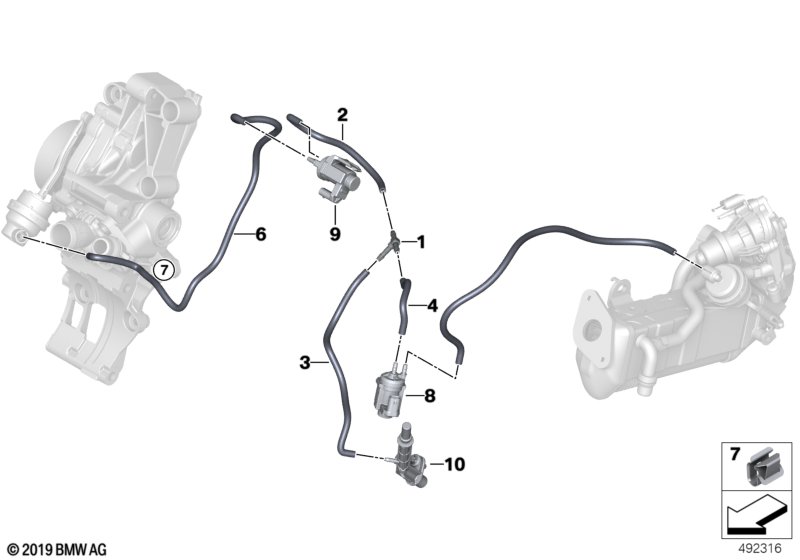

This Vacuum control technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer LCI 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | T-Connector | 1 | 11721439973 | $1.07 | Shop at ECS Tuning | |||||
| 02 | Vacuum hose black | 3,5X2,0 | X | 11747797129 | $17.14 | Shop at ECS Tuning | ||||
| 03 | Vacuum hose black | 3,5X2,0 | X | 11747797129 | $17.14 | Shop at ECS Tuning | ||||
| 04 | Vacuum hose black | 3,5X2,0 | X | 11747797129 | $17.14 | Shop at ECS Tuning | ||||
| 05 | Vacuum hose red | 3,5X2,0 | X | 11657796857 | $16.43 | Shop at ECS Tuning | ||||
| 06 | Vacuum hose red | 3,5X2,0 | X | 11657796857 | $16.43 | Shop at ECS Tuning | ||||
| 07 | Clip | 1 | 12521437136 | $0.63 | Shop at ECS Tuning | |||||
| 08 | Electr.valve | 1 | 11748570591 | Shop at ECS Tuning | ||||||
| 09 | Electr.valve | 1 | 11748570591 | Shop at ECS Tuning | ||||||
| 10 | non-return valve | 1 | 11668513330 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F46 Gran Tourer LCI 218d Vacuum control?
- This technical diagram illustrates the Vacuum control within the Engine group for the 2 Series F46 Gran Tourer LCI 218d produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the T-Connector (Part #11721439973).
- Which models use the hardware listed in this Vacuum control?
- The hardware and components featured in the Vacuum control are specific to the 2 Series F46 Gran Tourer LCI 218d produced during 2022. These technical specifications ensure that parts like the T-Connector (11721439973) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Vacuum control assembly?
- Each item in the Vacuum control corresponds to the numbered list below the illustration. For the 2 Series F46 Gran Tourer LCI 218d, you can identify the T-Connector by locating its position on the schematic, which then links to the official BMW part number 11721439973 for the Engine section.
