Exhaust turbocharger with lubrication for BMW 2 Series F46 Gran Tourer LCI 216d (2021)

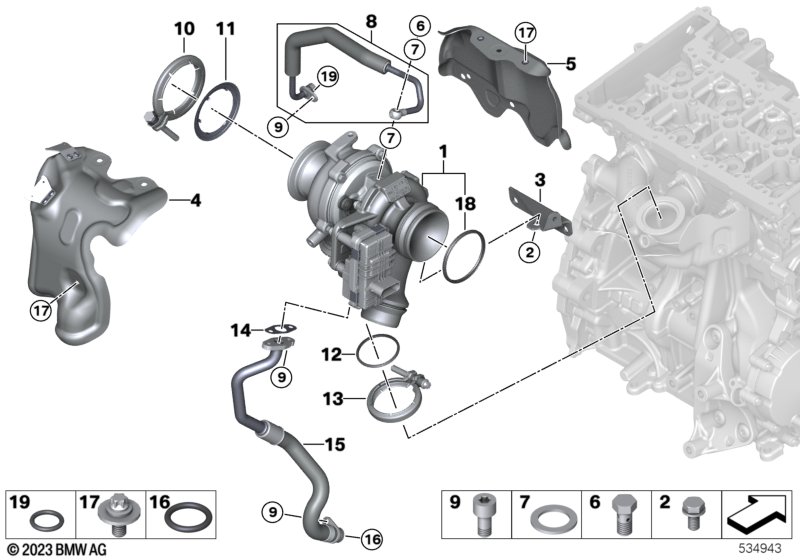

This Exhaust turbocharger with lubrication technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer LCI 216d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Please always observe repair instructions 11 65 020! |
||||||||||
| 01 | Turbocharger | 1 | 11658591734 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Gasket ring | 1 | 11628519884 | Shop at ECS Tuning | ||||||
| -- | Sealing ring | 2 | 11427100363 | Shop at ECS Tuning | ||||||
| -- | Gasket Asbestos Free | 1 | 11427925922 | Shop at ECS Tuning | ||||||
| -- | Oil pipe | 1 | 11428579999 | Shop at ECS Tuning | ||||||
| -- | Return pipe | 1 | 11428580000 | Shop at ECS Tuning | ||||||
| 02 | Hex bolt with washer | M8X16 | 3 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 03 | Support | 1 | 11658580097 | Shop at ECS Tuning | ||||||
| 04 | Heat shield exhaust turbocharger | 1 | 11658579397 | Shop at ECS Tuning | ||||||
| 05 | Heat shield exhaust turbocharger | 1 | 11658579396 | Shop at ECS Tuning | ||||||
| 06 | Hollow bolt | M10X1-ZNNIV SI | 1 | 07119907291 | Shop at ECS Tuning | |||||
| 07 | Sealing ring | 2 | 11427100363 | NoS | Shop at ECS Tuning | |||||
| 08 | Oil pipe | 1 | 11428579999 | Shop at ECS Tuning | ||||||
| 09 | ISA screw | M6X12-8.8-ZNNIV | 4 | 07129905867 | Shop at ECS Tuning | |||||
| 10 | Screw clamp | 1 | 18308512137 | Shop at ECS Tuning | ||||||
| 11 | Gasket | 1 | 18308513651 | Shop at ECS Tuning | ||||||
| 12 | Gasket ring | 1 | 11628519884 | Shop at ECS Tuning | ||||||
| 13 | Clamp | 1 | 11628519885 | Shop at ECS Tuning | ||||||
| 14 | Gasket Asbestos Free | 1 | 11427925922 | Shop at ECS Tuning | ||||||
| 15 | Return pipe | 1 | 11428580000 | Shop at ECS Tuning | ||||||
| 16 | O-ring | 16X2MM | 1 | 11428604872 | Shop at ECS Tuning | |||||
| 17 | Star-socket screw | M6X12 8.8 | 5 | 07119908672 | Shop at ECS Tuning | |||||
| 18 | Preformed seal | 1 | 11617796622 | $6.65 | Shop at ECS Tuning | |||||
| 19 | O-ring | 9,7X1,5MM | 1 | 11537610049 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
