Engine block for BMW 5 Series E39 535i (1997)

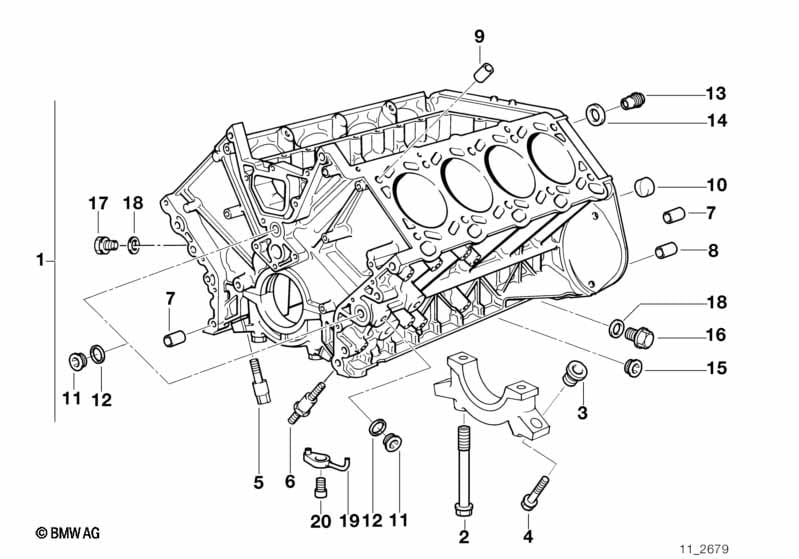

This Engine block technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1997.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine block with piston | ALUSIL | 1 | 09/1998 | 11111745584 | $5803.20 | ENDED, +core | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | non-return valve | 2 | 09/1998 | 11111734667 | $11.15 | Shop at ECS Tuning | ||||
| -- | Spacer sleeve | 2 | 09/1998 | 11111739185 | $3.60 | Shop at ECS Tuning | ||||
| 02 | Collar screw | M11X99 | 10 | 11117628302 | Shop at ECS Tuning | |||||
| 03 | Spacer bush | 10 | 11111710132 | $5.27 | Shop at ECS Tuning | |||||
| 04 | Collar screw | M8X31 | 10 | 11111736005 | $0.77 | Shop at ECS Tuning | ||||
| 05 | Screw | 1 | 11111736059 | $5.13 | Shop at ECS Tuning | |||||
| 06 | Spacer | 2 | 11111747403 | $4.90 | Shop at ECS Tuning | |||||
| 07 | Dowel | D=10,5MM | 4 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 08 | Dowel | D=14,5MM | 2 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| 09 | Dowel | D=12,5MM | 4 | 11121726241 | $1.62 | Shop at ECS Tuning | ||||
| 10 | Cover lid | D=15MM | 2 | 07119937230 | $0.59 | Shop at ECS Tuning | ||||
| 11 | Screw plug | M16X1,5 | 3 | 07119902292 | $2.83 | Shop at ECS Tuning | ||||
| 12 | Gasket ring | A16X20-AL | 3 | 07119963252 | $0.57 | Shop at ECS Tuning | ||||
| 13 | Regulating valve | 1 | 11427500565 | $17.97 | Shop at ECS Tuning | |||||
| 14 | O-ring | 18,0X2,5MM | 1 | 11421741129 | $1.81 | Shop at ECS Tuning | ||||
| 15 | Screw plug | M10X1 | 4 | 11122244830 | $2.12 | Shop at ECS Tuning | ||||
| 16 | Screw plug | M14X1,5-ZNNIV | 1 | 07119904539 | $2.56 | Shop at ECS Tuning | ||||
| 17 | Screw plug | M14X1,5-ZNNIV | 1 | 07119904539 | $2.56 | Shop at ECS Tuning | ||||
| 18 | Gasket ring | A14X20-AL | 2 | 07119963225 | $0.11 | Shop at ECS Tuning | ||||
| 19 | Oil Spraying Nozzle | 8 | 11421741642 | $14.97 | Shop at ECS Tuning | |||||
| 20 | ISA screw | M6X20-8.8-ZNNIV | 8 | 07129901130 | $0.38 | Shop at ECS Tuning | ||||
